The TPS54610PWPR from Texas Instruments is a highly efficient, synchronous buck regulator that offers a compact solution for powering core voltages of high-performance processors and FPGAs. Designed to operate from a 3V to 6V input voltage range, this step-down converter can deliver up to 6A of continuous output current with excellent load and line regulation.

Key Features

• High Efficiency: Integrated MOSFETs and a switching frequency of up to 550 kHz allow the TPS54610PWPR to achieve efficiencies of up to 95%.
• Adjustable Output Voltage: The output voltage can be precisely adjusted from 0.9V to 3.3V to meet the needs of various applications.
• Thermal Protection: An internal thermal shutdown function protects the device and the application against overheating.
• Under-Voltage Lockout (UVLO): Ensures that the device operates at the correct input voltage levels, enhancing system reliability.
• Flexible Switching Frequency: The user can configure the switching frequency from 280 kHz to 550 kHz to optimize for efficiency or component size.
• Power Good (PG) Output: This feature provides a power-good signal when the output voltage is within regulation, which is useful for sequencing in complex systems.

Applications

The TPS54610PWPR is ideal for a wide range of applications including, but not limited to:

• Point-of-Load Conversions
• Networking Equipment
• Telecommunications Infrastructure
• Server and Storage Systems
• Industrial Equipment

Package and Quality

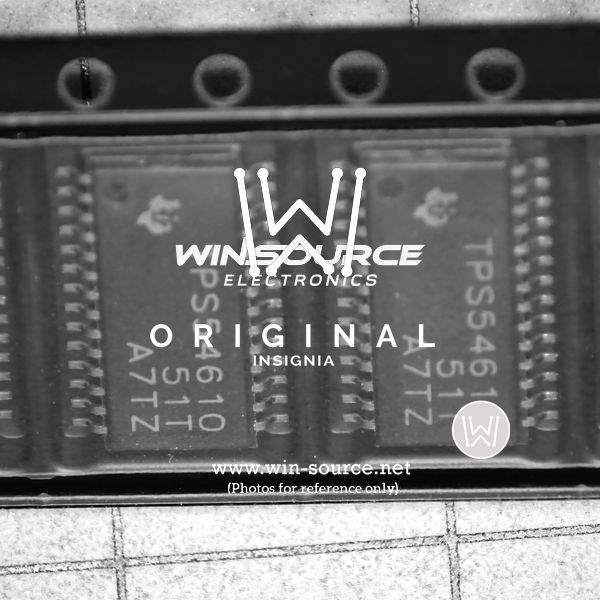

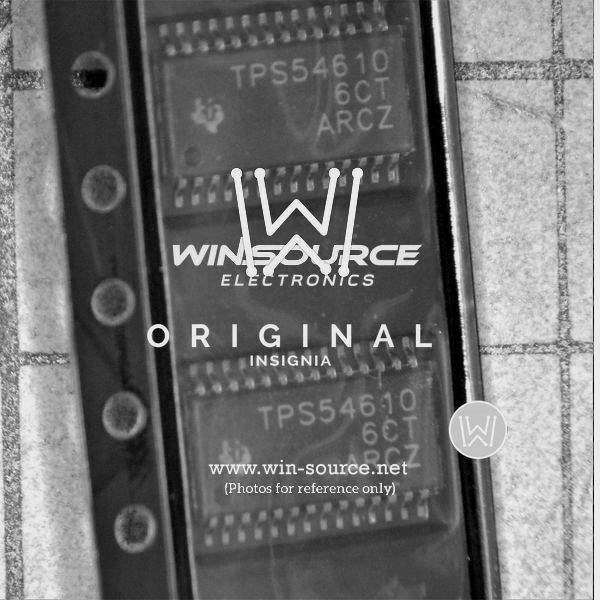

Encased in a 28-pin HTSSOP (PWP) package with PowerPAD™, the TPS54610PWPR combines a space-saving design with enhanced thermal performance. Texas Instruments ensures high-quality and reliability, making this regulator a preferred choice for mission-critical applications.

Design Resources

Designers can access a range of resources from Texas Instruments, including datasheets, reference designs, and evaluation modules, to facilitate rapid design and development using the TPS54610PWPR.

Note: Before integrating the TPS54610PWPR into your designs, please consult the latest datasheets and product resources from Texas Instruments to ensure compliance with specific application requirements.
