The TPS562210ADDFR is a highly efficient synchronous step-down (buck) converter designed and manufactured by Texas Instruments. It is an integral component for modern electronics, capable of driving up to 2A of continuous output current with excellent load and line regulation. This device operates over a wide input voltage range from 4.5V to 17V, making it suitable for a variety of applications including consumer electronics, industrial systems, and telecommunications equipment.

Key Features:

• Output Current: Capable of delivering 2A of continuous output current.
• Input Voltage Range: Wide input voltage range from 4.5V to 17V, accommodating a variety of power sources.
• High Efficiency: Integrated power MOSFETs provide high efficiency at light and heavy loads.
• Adjustable Switching Frequency: The switching frequency is programmable from 500kHz to 2MHz, allowing for flexibility in component selection and optimization of size and efficiency.
• Thermal Performance: Enhanced thermal performance with an exposed thermal pad.
• Protection Features: Includes overcurrent protection, overvoltage protection, and thermal shutdown to ensure safe operation under abnormal conditions.

Applications:

The TPS562210ADDFR is versatile and can be used in a wide array of applications such as:

• Point of Load (POL) power supplies
• Telecommunications and networking equipment
• Consumer electronics such as set-top boxes and gaming consoles
• Industrial and automation systems

Package and Availability:

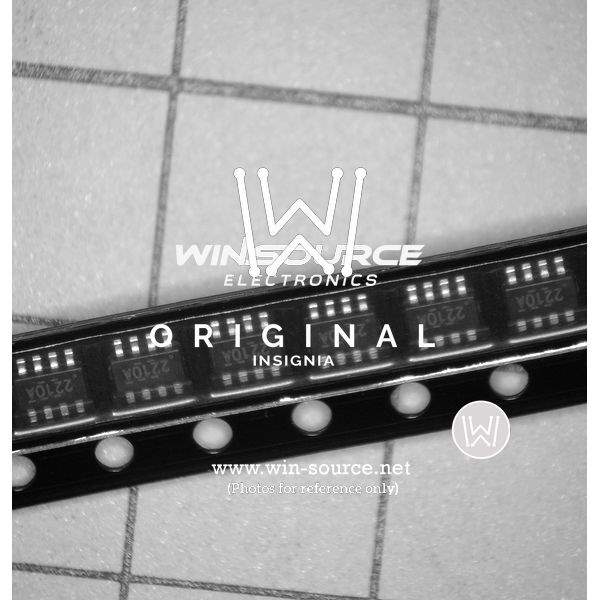

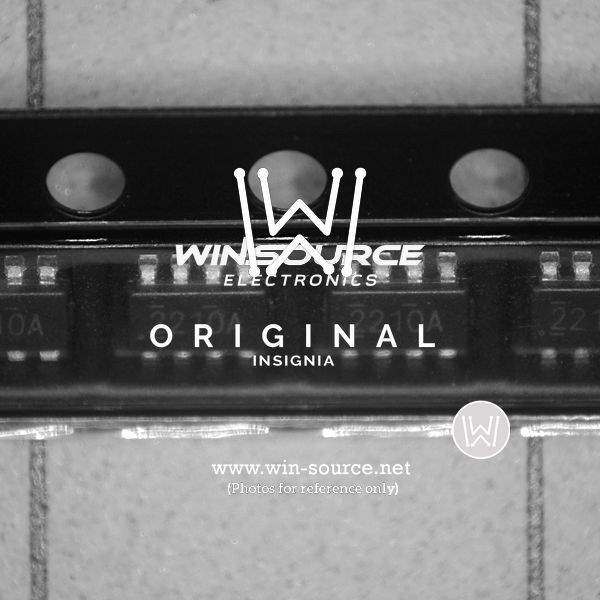

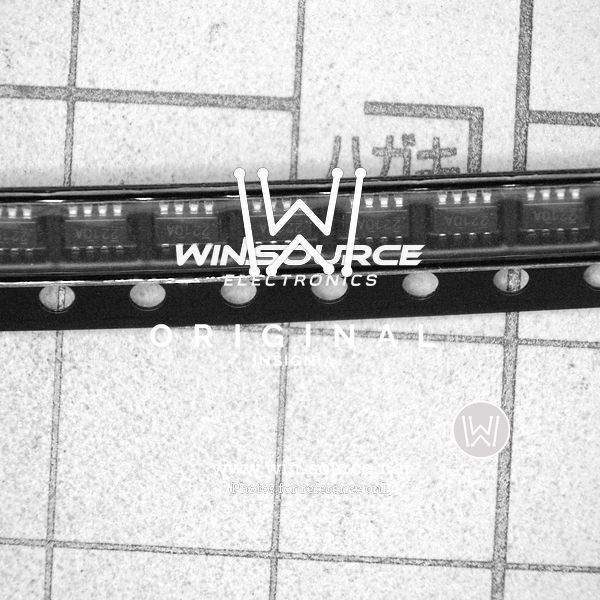

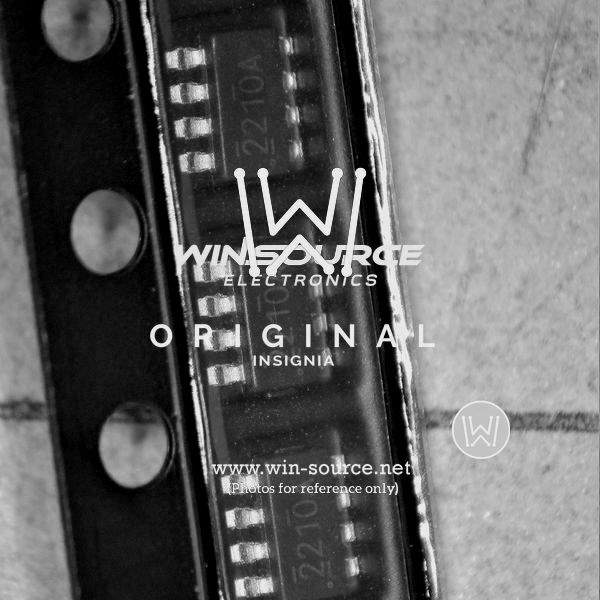

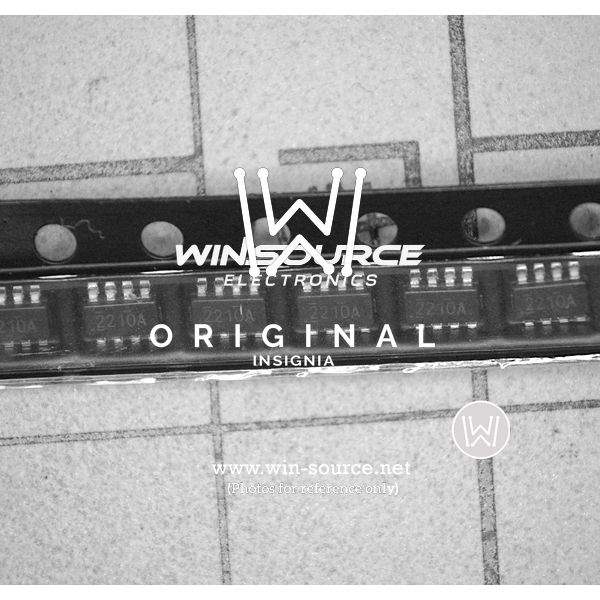

This step-down converter is available in a compact 8-pin SON package (3mm x 3mm) with an exposed thermal pad for improved thermal dissipation. The TPS562210ADDFR is optimized for small form factors, providing a space-saving solution for densely packed PCBs.

For detailed technical specifications, application notes, and support documentation, visit the Texas Instruments website or contact their support team.
