TPS61235RWLR by Texas Instruments

The TPS61235RWLR is a high-efficiency, synchronous boost converter designed by the renowned semiconductor manufacturer Texas Instruments (TI). This advanced power solution is engineered to manage power conversion with an input voltage range from 2.5V to 5.5V, making it an ideal choice for battery-powered applications. The device is particularly suited for equipment that requires a boosted voltage from a lower voltage source, such as single-cell lithium-ion batteries.

The TPS61235RWLR stands out with its ability to support up to 5A of output current, providing ample power for demanding applications. It also features a fixed switching frequency of 1.2MHz, which allows for a compact solution with small external components. This high switching frequency, combined with its synchronous rectification, ensures high efficiency across a wide load range, a critical feature for extending battery life in portable devices.

This converter is packed with protective features to ensure the longevity and reliability of the end application. It includes over-temperature protection, over-voltage protection, and under-voltage lockout, safeguarding the device and connected components from potential damage due to abnormal operating conditions. Additionally, the TPS61235RWLR offers a Power Save Mode, which enhances efficiency at light loads, thereby minimizing power consumption when full power is not necessary.

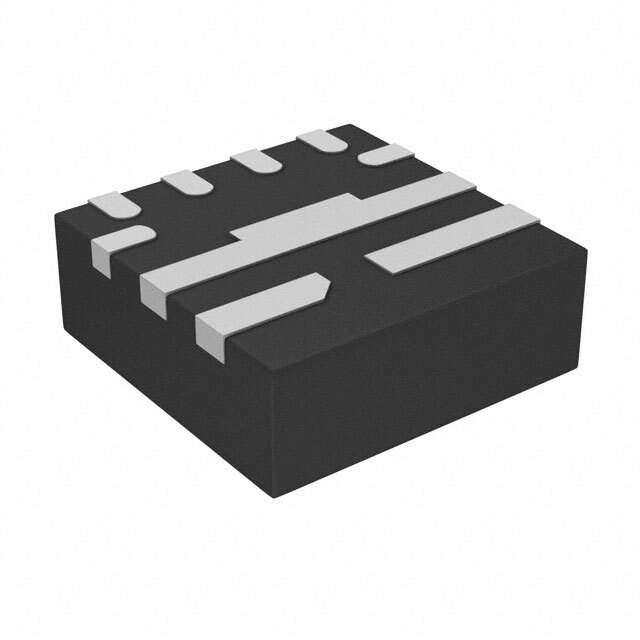

The TPS61235RWLR comes in a compact WQFN-16 package, making it suitable for space-constrained applications. Its small form factor is particularly beneficial in portable electronics where space is at a premium, such as smartphones, tablets, and wearable devices. The device also features a programmable soft start function, which reduces inrush current during startup, contributing to system stability and reliability.

Overall, the TPS61235RWLR is a versatile and powerful solution for a wide range of applications requiring efficient voltage boosting. Its combination of high current support, efficiency, compactness, and protective features make it a top choice for designers looking to optimize their power management systems.
