Product Overview: TPS62097 18RWKR from Texas Instruments

The TPS62097 18RWKR, designed and manufactured by Texas Instruments, is a high-efficiency synchronous step-down converter that is an ideal power management solution for various applications. This device is part of the TPS6209x family, known for its compact size and high performance in power conversion.

With an input voltage range of 2.5V to 5.5V, the TPS62097 18RWKR is versatile and can cater to a wide array of power sources, making it suitable for battery-powered devices, as well as for systems that are connected to fixed power supplies. The device is capable of delivering up to 4A of continuous output current, ensuring sufficient power for demanding applications.

The efficiency of the TPS62097 18RWKR is one of its standout features. It achieves up to 95% efficiency across a wide load range, thanks to its synchronous step-down converter design which minimizes power loss during operation. This high efficiency is particularly beneficial in portable applications where battery life is critical.

In terms of performance, the TPS62097 18RWKR offers a fixed switching frequency of 2.5MHz. This high-frequency operation allows for the use of small surface-mount inductors and capacitors, which reduces the overall footprint of the power supply on the circuit board. As a result, it is an excellent choice for space-constrained applications such as smartphones, tablets, and other portable electronics.

Additional features of this device include power-save mode for improved efficiency at light loads, a 1% output voltage accuracy over the full temperature range, and a complete set of protection features such as over-current, over-temperature, and under-voltage lockout. These features ensure reliable operation under various conditions and safeguard the device and the system it powers from potential damage.

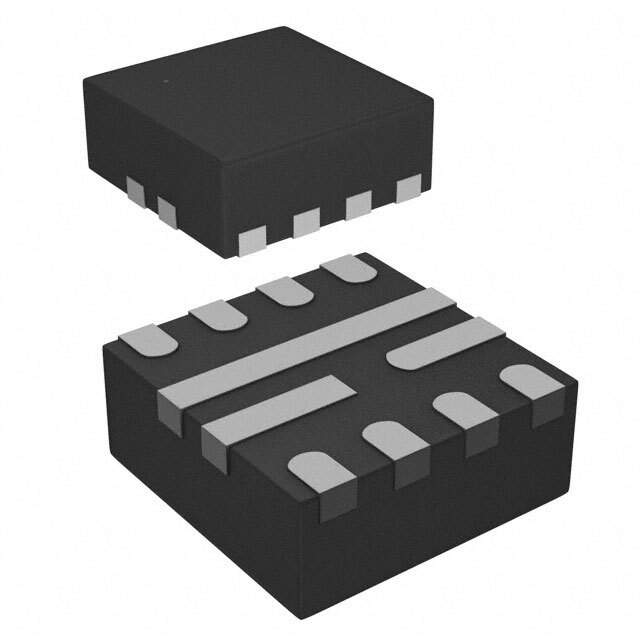

The TPS62097 18RWKR is provided in a 16-pin VQFN (RWK) package, which is designed for optimal thermal performance and space-saving on the PCB. Its robust design and comprehensive feature set make it an excellent choice for designers looking for a high-quality power management solution.
