The TPS6209733RWKT is a highly efficient, synchronous step-down converter brought to you by Texas Instruments, a leader in semiconductor solutions. This advanced power management integrated circuit (IC) is designed to address the needs of space-constrained and power-sensitive applications, delivering performance with precision.

Key Features

• High Efficiency: The device provides up to 95% efficiency, which helps in minimizing heat generation and improving battery life in portable applications.
• Wide Input Voltage Range: It operates over a wide input voltage range from 2.5V to 6V, making it versatile for various power sources.
• Adjustable Output Voltage: The output voltage can be adjusted from 0.9V to 4V, allowing for flexibility in different design requirements.

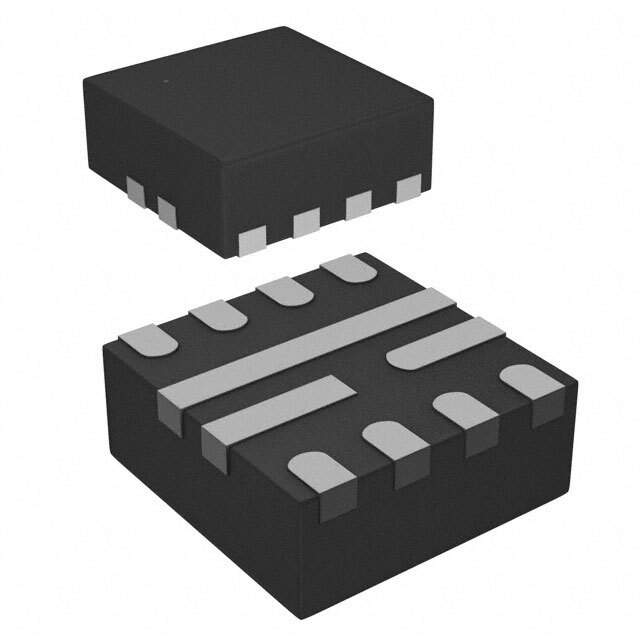

• Compact Size: The TPS6209733RWKT comes in a small 2x2mm WSON package, ideal for space-constrained applications.
• High Switching Frequency: With a 4MHz fixed switching frequency, the device allows the use of small external components, reducing the overall solution footprint.

Applications

This step-down converter is suitable for a wide range of applications, particularly where high efficiency and compact design are paramount. Typical applications include:

• Portable and battery-powered equipment
• Smartphones and tablets
• Wearable technology
• Wireless communication systems
• Power supply for DSPs, MCUs, and FPGAs

Technical Specifications

The TPS6209733RWKT boasts a plethora of technical specifications that make it a robust choice for power conversion needs:

• Output Current: Up to 3A
• Power Save Mode for Light Load Efficiency
• Output Voltage Sense for Accurate Regulation
• Over-Temperature and Over-Current Protection
• 100% Duty Cycle for Lowest Dropout

With its combination of efficiency, versatility, and compactness, the TPS6209733RWKT from Texas Instruments is an excellent choice for designers looking to optimize their power management solutions in portable and space-sensitive applications.
