The TPS62135RGXT is a high-efficiency synchronous step-down converter designed by Texas Instruments, renowned for its advanced power management integrated circuits. This component is part of the TPS6213x family and is specifically engineered to cater to a wide range of applications, including telecommunications, networking equipment, and portable devices.

Key Features:

• Input Voltage Range: The TPS62135RGXT operates with an input voltage range of 3V to 17V, making it versatile for various power supply scenarios.
• Output Voltage: It delivers a configurable output voltage that can be adjusted from 0.9V to 6V, allowing for great flexibility in power design.
• High Efficiency: With its synchronous step-down converter design, it achieves high efficiency over a wide load current range, which is crucial for battery-powered applications.
• Current Rating: The device supports up to 3A of continuous output current, accommodating moderately high-power requirements.
• Low Quiescent Current: It features a low quiescent current, which is beneficial for extending battery life in portable applications.

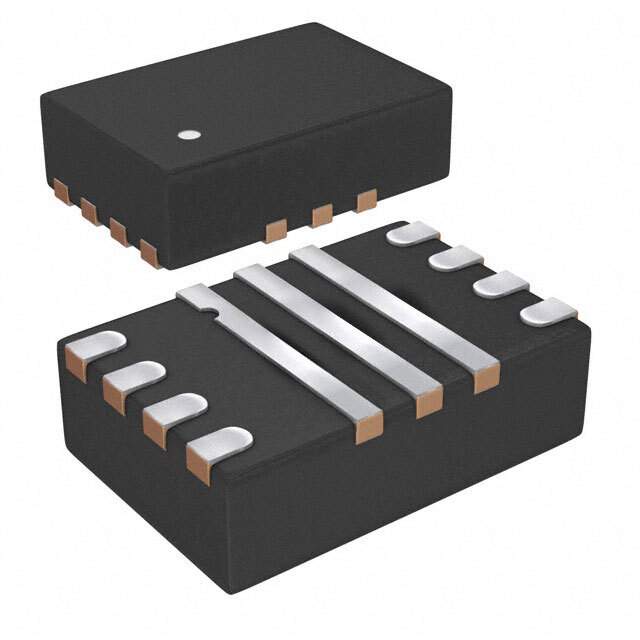

• Thermal Performance: The TPS62135RGXT is offered in a 16-pin VQFN package, which provides excellent thermal performance and a small footprint on the PCB.
• Protection Features: It includes a suite of protection features such as over-temperature, over-current, and under-voltage lockout, ensuring reliable operation and longevity of the device.
• Control Modes: The device offers selectable modes of operation, including a Power Save Mode for improved efficiency at light loads and a Forced PWM mode for better noise performance at heavy loads.

Applications:

The TPS62135RGXT is suitable for a wide array of applications, including but not limited to:

• Portable and Battery-Powered Equipment
• Networking and Telecom Infrastructure
• Industrial and Automotive Systems
• Point of Load Power Supplies

With its compact design, high efficiency, and robust protection features, the TPS62135RGXT from Texas Instruments is an ideal choice for designers looking to develop power-efficient and reliable products.
