Product Overview: TPS62625YFFR by Texas Instruments

The TPS62625YFFR is a high-efficiency, low-noise, step-down DC/DC converter designed and manufactured by Texas Instruments. This component is part of the TPS626xx family of ultra-small, high-frequency, synchronous step-down converters that are perfect for battery-powered applications where space and extended battery life are crucial factors.

Key Features

• High Efficiency: The TPS62625YFFR boasts an outstanding conversion efficiency, which can reach up to 90%. This efficiency helps to minimize heat generation and prolong battery life in portable devices.

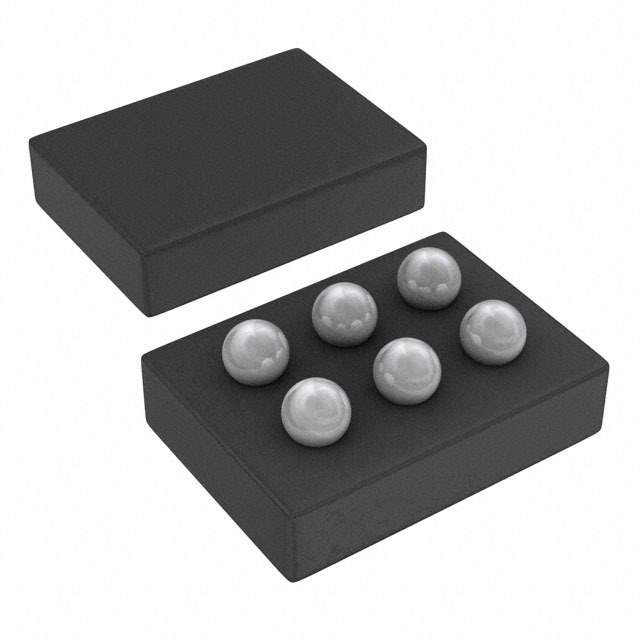

• Compact Size: With its ultra-small 0.9mm x 1.3mm Wafer Chip-Scale Package (WCSP), the TPS62625YFFR saves valuable board space, making it an ideal solution for space-constrained applications.
• Adjustable Output Voltage: The output voltage of this converter is adjustable from 1.2V to 1.8V, allowing flexibility across different design requirements and ensuring compatibility with a variety of low-power ICs.
• Low Noise Operation: It is designed for low noise operation, which is essential for sensitive RF and audio applications where noise can significantly impact performance.
• Quick Output Discharge: The device features a quick output discharge that provides a rapid shutdown when the device is disabled, which is beneficial for power sequencing and system protection.

Applications

The TPS62625YFFR is suitable for a wide range of applications, particularly those where efficiency and space are at a premium. These applications include:

• Smartphones and Tablets
• Wireless Headsets and Earbuds
• Portable Media Players
• Wearable Technology
• GPS Devices

Technical Specifications

The device operates with an input voltage range of 2.3V to 5.5V, making it compatible with lithium-ion batteries and other common power sources. It can supply up to 600mA of output current, which is sufficient for many low-power applications. The TPS62625YFFR also features excellent transient response and supports a switching frequency of 6MHz, which allows the use of small, low-cost capacitors and inductors.

With its advanced features, the TPS62625YFFR from Texas Instruments is a robust and versatile power solution that meets the demanding requirements of modern portable electronics.
