Product Overview: TPS62821DLCR by Texas Instruments

The TPS62821DLCR is a highly efficient synchronous step-down converter from Texas Instruments, designed for a variety of applications requiring a compact, high-performance power solution. This device is part of the TPS6282x family that offers excellent power supply solutions for systems requiring low quiescent current, such as battery-powered electronics, IoT devices, and energy-sensitive applications.

Key Features

• High Efficiency: The TPS62821DLCR provides a high efficiency across a wide load range, thanks to its 2.5V to 5.5V input voltage range and 1A of continuous output current. This efficiency is maintained by an automatic power-save mode, which reduces the quiescent current to a mere 60 nA during light-load operation.
• Adjustable Output Voltage: Users can configure the output voltage from 0.6V to 4.5V, allowing for a versatile range of power needs to be addressed with a single component.

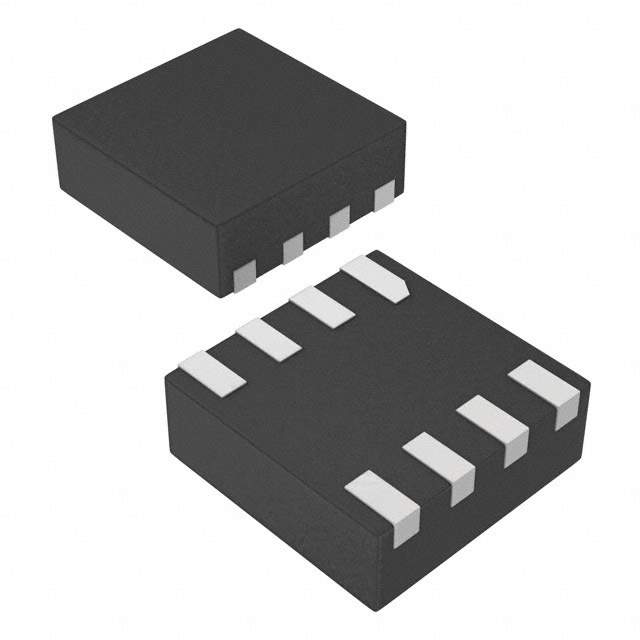

• Small Footprint: The device comes in a small 2x2 mm WSON package, making it ideal for space-constrained applications.
• Stable Operation: The TPS62821DLCR requires a minimal number of external components for operation, which includes ceramic input and output capacitors, ensuring stable performance across various conditions.
• Thermal Protection: It also features thermal shutdown and over-current protection, safeguarding the device and the system from potential damage due to excessive heat or load conditions.

Applications

The versatility and efficiency of the TPS62821DLCR make it suitable for a wide array of applications. It is commonly used in portable electronics, wearables, smart sensors, and wireless connectivity modules. Additionally, its power-saving capabilities make it an excellent choice for energy-harvesting systems, medical devices, and any other battery-operated devices where power efficiency is crucial.

Conclusion

In summary, the TPS62821DLCR from Texas Instruments stands out as a reliable and efficient power management solution. Its combination of high efficiency, low quiescent current, and adjustable output voltage, all within a compact package, make it a top choice for designers looking to optimize the power performance of their applications.
