Overview of Texas Instruments TPS65132B5YFFR

The TPS65132B5YFFR is a high-performance, dual-output power supply integrated circuit (IC) designed by Texas Instruments (TI) to meet the requirements of today's portable electronics. This IC is specifically tailored for devices requiring positive and negative supply rails, such as OLED displays, LCD panels, and CCD sensors. Its compact form factor and efficiency make it an ideal choice for space-constrained and power-sensitive applications.

Key Features

• Dual Output: The TPS65132B5YFFR provides both positive and negative outputs that are independently adjustable, allowing for versatile application across various devices.
• Wide Input Voltage Range: This power supply IC operates over a wide input voltage range from 2.5V to 5.5V, accommodating various power sources, including single-cell lithium-ion batteries.
• Adjustable Output Voltage: The output voltage can be adjusted through external resistors, providing design flexibility. It can supply a positive voltage up to 5.5V and a negative voltage down to -5.5V.
• High Efficiency: TI's TPS65132B5YFFR is designed for high efficiency, which is critical for battery-powered devices, ensuring longer operation time between charges.

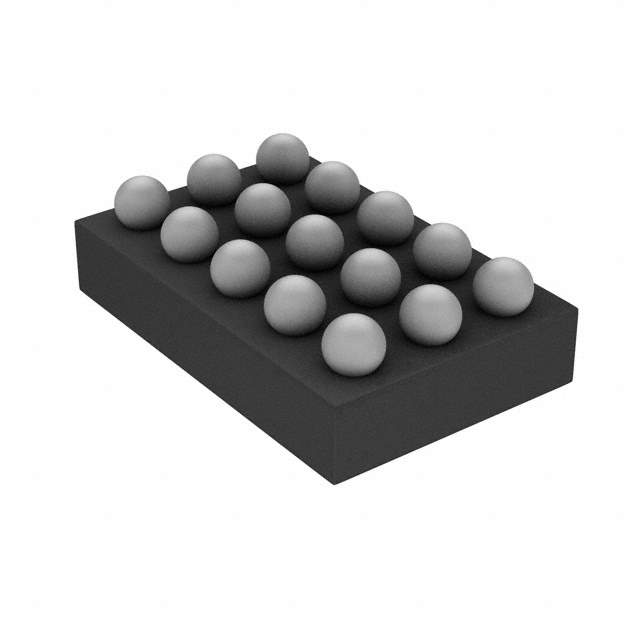

• Small Package Size: The device comes in a compact 15-ball wafer-level chip-scale package (WCSP), making it suitable for portable devices where space is at a premium.
• Protection Features: It includes built-in short-circuit and over-temperature protection, enhancing the safety and reliability of the end application.

Applications

The TPS65132B5YFFR is ideal for a wide range of applications that require dual supply voltages. It is commonly used in:

• Smartphones and tablets
• Portable media players
• Handheld gaming consoles
• Digital cameras and camcorders
• Portable medical devices

Conclusion

With its combination of dual output voltages, high efficiency, and a small package size, the Texas Instruments TPS65132B5YFFR is an excellent power solution for designers looking to optimize their portable and compact electronic devices. This IC not only simplifies the power supply design but also ensures stable operation, making it a reliable component for a multitude of applications.
