The TPS658622AZQZR is a highly integrated power management IC from Texas Instruments, designed to cater to the demanding needs of complex portable and handheld devices. This advanced power solution integrates multiple features to ensure efficient power distribution, battery management, and system regulation in a compact package.

Key Features:

• High Integration: This chip includes a linear charger, multiple DC-DC converters, an LDO, and an ADC among other features, reducing the number of external components required on the PCB.
• Programmable Flexibility: With its I2C-compatible interface, the TPS658622AZQZR allows for programmable control over various parameters, enabling customization for specific application requirements.
• Efficiency: The integrated step-down converters are designed for high efficiency, which is critical for battery-operated devices, helping to prolong battery life and reduce thermal challenges.
• Power Sequencing: It offers configurable power-on sequencing, which is essential for systems with multiple power rails to ensure proper startup and operation.
• Battery Management: The device features a linear charger with thermal regulation, which optimizes the charging rate for different conditions to maximize battery performance and longevity.
• Compact Form Factor: The TPS658622AZQZR comes in a small footprint package, making it ideal for space-constrained applications.

Applications:

The versatility of the TPS658622AZQZR makes it suitable for a wide range of applications, including but not limited to:

• Smartphones and Tablets
• Portable Media Players
• Handheld Gaming Devices
• GPS Units
• Other Portable Electronics

Technical Specifications:

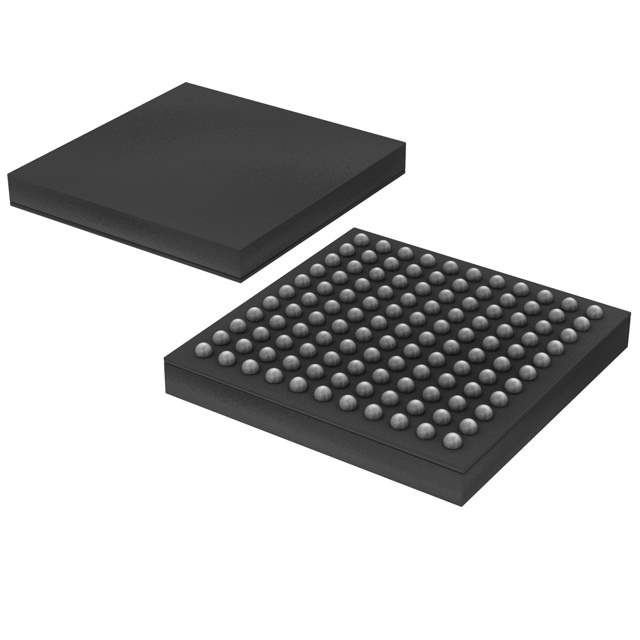

The TPS658622AZQZR operates over a wide input voltage range and is equipped with multiple outputs to power various system components. The device is packaged in a 120-BGA (ZQZ) package that is RoHS compliant and designed for lead-free soldering, ensuring environmental standards are met.

As a product of Texas Instruments, the TPS658622AZQZR is backed by the company's reputation for quality, reliability, and support, making it a trusted choice for engineers and designers looking to optimize their power management solutions.
