The TPS65988DHRSHR is a highly integrated USB Type-C and USB Power Delivery (PD) controller from Texas Instruments. It is designed to provide a comprehensive solution for managing USB Type-C ports with Power Delivery capabilities. The device is suitable for a wide range of applications, including laptops, tablets, smartphones, and other portable electronics that require efficient power management and data communication through a USB-C interface.

Key Features

• USB Power Delivery: Supports USB PD 3.0, enabling higher power capabilities and flexible power management across USB-C connections.
• Programmable Power Supply (PPS): Offers advanced power supply features, including fast role swap and adjustable voltage/current levels for optimal charging performance.
• Dual-Port Operation: Capable of managing two USB-C ports simultaneously, allowing for versatile configurations in multi-port devices.
• Integrated Power Switches: Includes built-in power switches to reduce external component count and simplify the overall design.
• Alternate Mode Support: Facilitates the use of alternate modes such as DisplayPort, Thunderbolt, and HDMI over a USB-C connection.
• I2C Interface: Provides an I2C interface for communication with the host processor, enabling easy integration and control.

Applications

• Notebook and Desktop Computers
• Smartphones and Tablets
• Docking Stations
• Monitors and Peripherals
• Power Adapters and Chargers

Technical Specifications

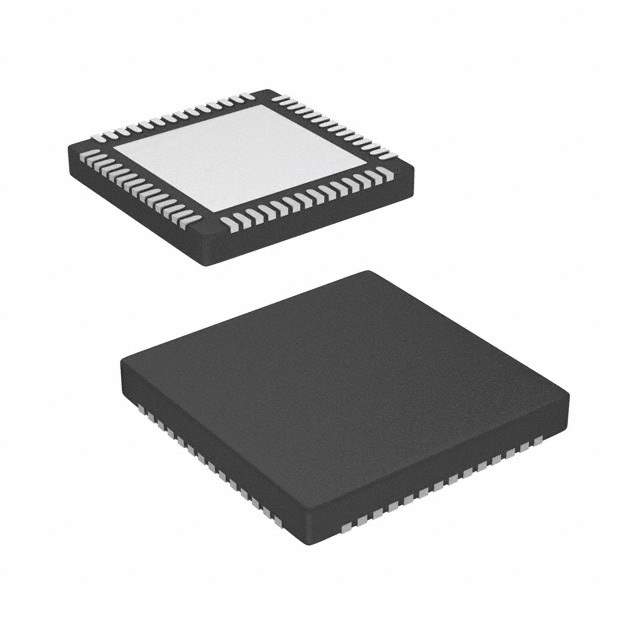

The TPS65988DHRSHR is packaged in a compact 6x6 mm QFN package, making it ideal for space-constrained applications. It operates over a wide temperature range and is designed to meet the stringent requirements of the latest electronic devices. Its advanced circuitry ensures reliable operation and protection against over-voltage, over-current, and over-temperature conditions.

With its robust feature set and Texas Instruments' reputation for quality, the TPS65988DHRSHR is an excellent choice for designers looking to implement USB-C and Power Delivery in their next-generation products.
