The TPS74001DPTR from Texas Instruments is a highly sophisticated, low-dropout (LDO) voltage regulator designed to deliver a stable and precise voltage supply for a wide array of electronic applications. This particular component stands out due to its exceptional regulation accuracy, thermal performance, and versatility, making it an ideal choice for sensitive electronics requiring a consistent power source.

Key Features:

• Adjustable Output: The TPS74001DPTR offers an adjustable output voltage range from 1.21V to 5.5V, allowing for high flexibility in various circuit designs.
• High Accuracy: This voltage regulator provides excellent load and line regulation, ensuring that the output voltage remains consistent despite changes in input voltage or load conditions.
• Low Dropout: With its low dropout voltage, the TPS74001DPTR can maintain output voltage regulation even when the input-to-output differential is minimal, making it highly efficient in battery-powered devices.
• Thermal Protection: It features built-in thermal shutdown and overcurrent protection, safeguarding the device and the system it powers from potential damage due to overheating or excessive current draw.
• Power Good Output: The inclusion of a 'power good' output signal provides a simple method for monitoring the status of the voltage rail, which is particularly useful in system diagnostics and sequencing.

Applications:

The TPS74001DPTR is suitable for a diverse range of applications, including but not limited to:

• Telecommunications equipment
• Portable/battery-powered devices
• Post-regulation for switching power supplies
• Data storage and networking systems
• Microprocessor/microcontroller or FPGA power supplies

Product Specifications:

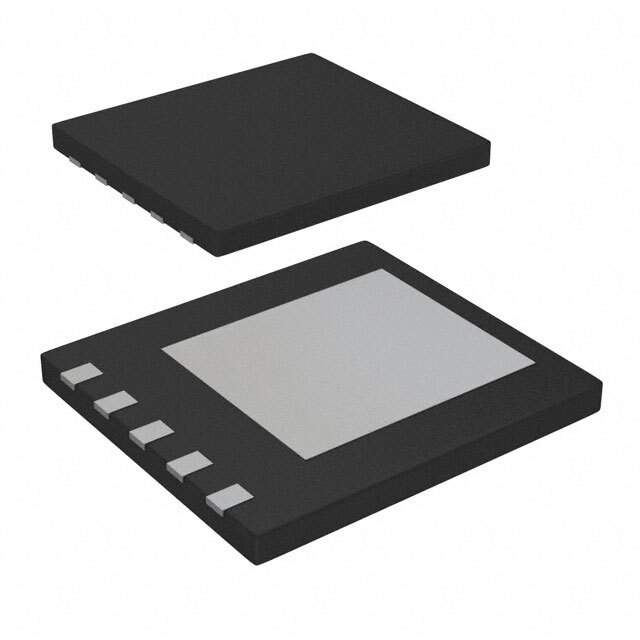

The device is packaged in a small, surface-mount, 8-pin SON package and is characterized for operation from -40°C to 125°C. With its adjustable output voltage and a maximum output current of 1.5A, the TPS74001DPTR is a versatile solution for managing power in complex electronic systems.

For more detailed information, datasheets, and technical support, customers are encouraged to visit the Texas Instruments official website or contact their local Texas Instruments distributor.
