Product Overview: TPS78230DDCR by Texas Instruments

The TPS78230DDCR is a high-performance, low-dropout (LDO) voltage regulator from the esteemed semiconductor manufacturer, Texas Instruments (TI). Designed with precision and efficiency in mind, this component is ideal for applications requiring a stable and reliable power supply.

This LDO regulator offers a fixed output voltage of 3.0V, which is a common requirement for many digital and analog circuits. The TPS78230DDCR is capable of delivering up to 150 mA of continuous output current, making it suitable for powering small to medium-sized loads. Despite its compact size, this regulator maintains a low dropout voltage, ensuring that it can provide a stable output even when the input voltage is close to the output voltage.

One of the standout features of the TPS78230DDCR is its ultra-low quiescent current, which is typically just 1 µA. This characteristic makes it an excellent choice for battery-powered and energy-sensitive applications where power conservation is crucial. The device also includes a thermal shutdown feature and current limit protection, enhancing system safety and reliability.

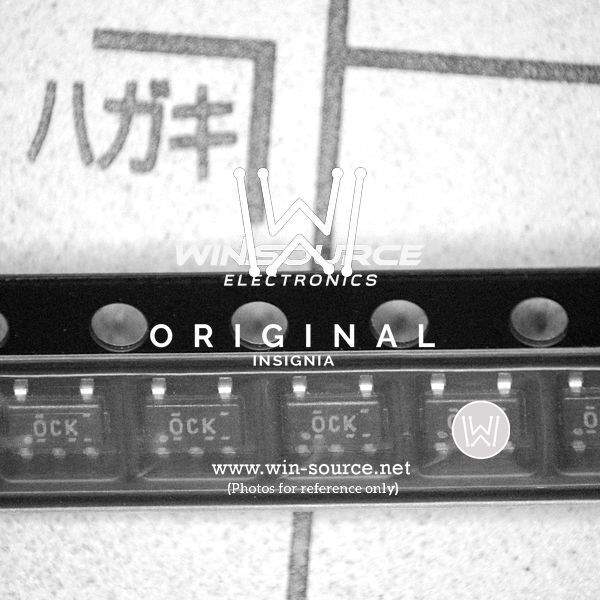

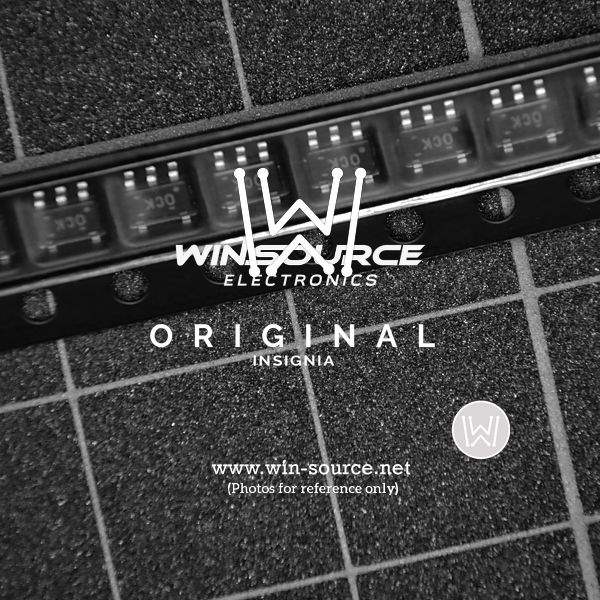

The TPS78230DDCR comes in a small 5-pin SOT-23 package, which is ideal for space-constrained applications. Its small footprint allows for integration into compact PCB layouts, providing designers with greater flexibility when managing board space.

Additional features include:

• Stable with low-ESR ceramic capacitors, which reduces the need for bulky tantalum capacitors.
• Excellent load and line transient response, maintaining output stability under dynamic conditions.
• Wide operating temperature range, ensuring performance across various environmental conditions.
• Low noise performance, suitable for RF and precision analog applications.

Overall, the TPS78230DDCR from Texas Instruments is a reliable and efficient solution for a wide range of applications, including portable electronics, microcontrollers, and analog devices. Its combination of low dropout, low quiescent current, and robust protection features make it a versatile choice for designers looking to optimize their power management systems.
