Overview of Texas Instruments TPS7A3701DRVT

The Texas Instruments TPS7A3701DRVT is a highly efficient, low-dropout linear voltage regulator designed for a wide range of applications. Offering outstanding AC performance with very low ground current, this regulator maintains a stable output even with large load and line transients, making it an ideal choice for sensitive analog circuits such as RF and precision analog systems.

Key Features

• Output Voltage Range: The TPS7A3701DRVT provides a wide adjustable output voltage range from 1.4V to 6.5V, allowing for versatile use in various circuit designs.
• High Accuracy: This regulator boasts a high accuracy of 1% over line, load, and temperature, ensuring reliable performance in demanding applications.
• Low Dropout: With a low dropout voltage of typically 250mV at full load, the device is efficient and can operate close to the input voltage, reducing power losses.
• Thermal and Overcurrent Protection: Built-in thermal shutdown and current limit features protect the device and the system from damage due to overheating and overcurrent conditions.
• Power Supply Rejection Ratio (PSRR): Excellent PSRR of 70dB at 1kHz minimizes the effect of supply voltage variations on the output voltage, crucial for precision applications.

Applications

Due to its high-performance characteristics, the TPS7A3701DRVT is suitable for a wide array of applications, including:

• RF and high-frequency circuits
• Precision analog systems
• Post-regulation for switching power supplies
• Portable and battery-powered equipment
• Medical equipment and instrumentation
• Industrial control systems

Package and Quality

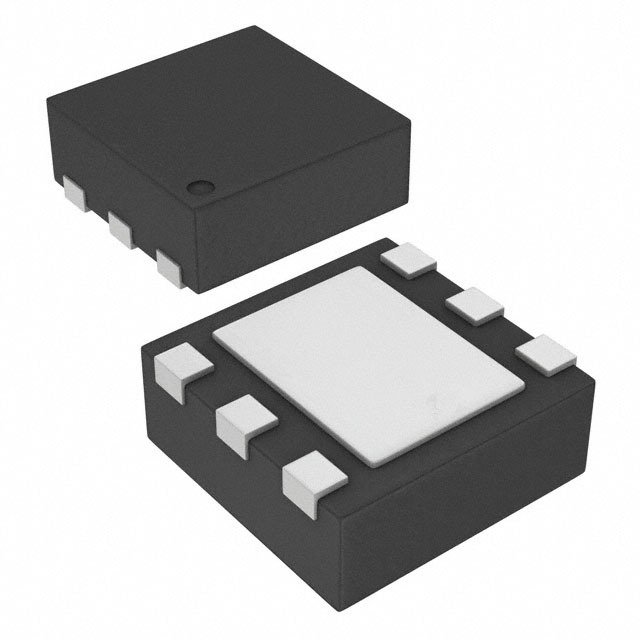

The TPS7A3701DRVT comes in a compact 6-pin SON package with a DRYT suffix, optimized for thermal performance and space-saving on the PCB. Texas Instruments is committed to high-quality standards, and this product is manufactured under strict quality control to ensure reliability and performance in critical systems.

This voltage regulator from Texas Instruments is a robust solution for designers looking to enhance the stability and efficiency of their power management systems, with the added assurance of a trusted brand known for its innovation and quality in the semiconductor industry.
