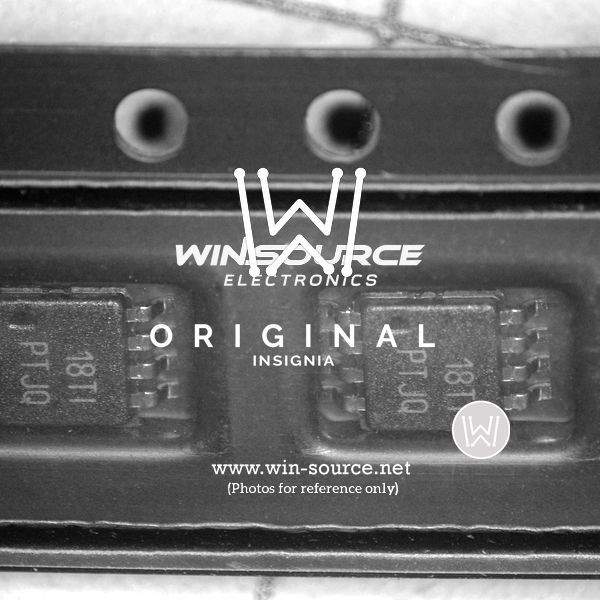

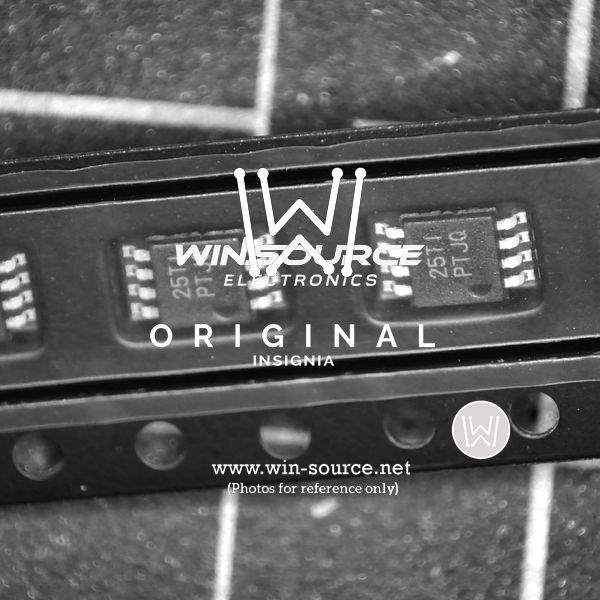

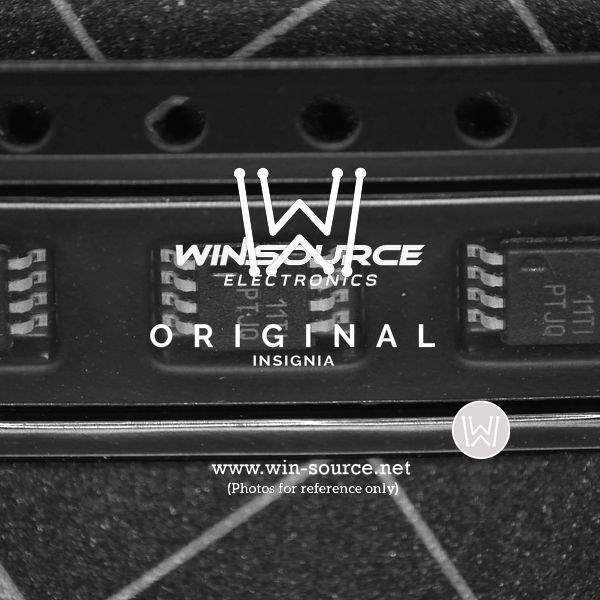

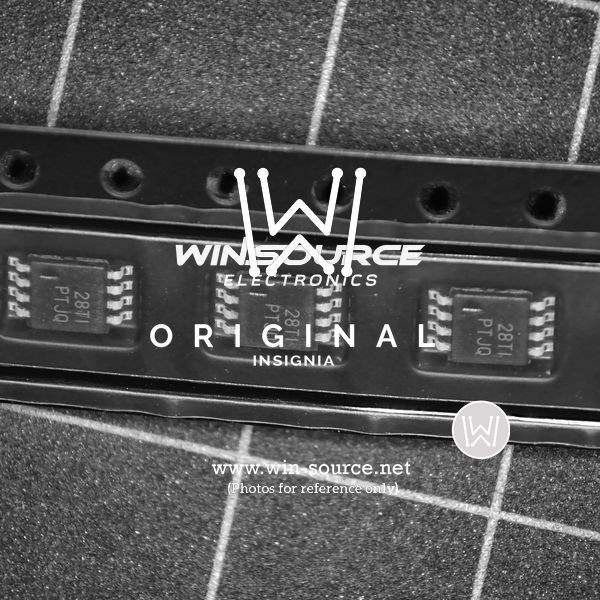

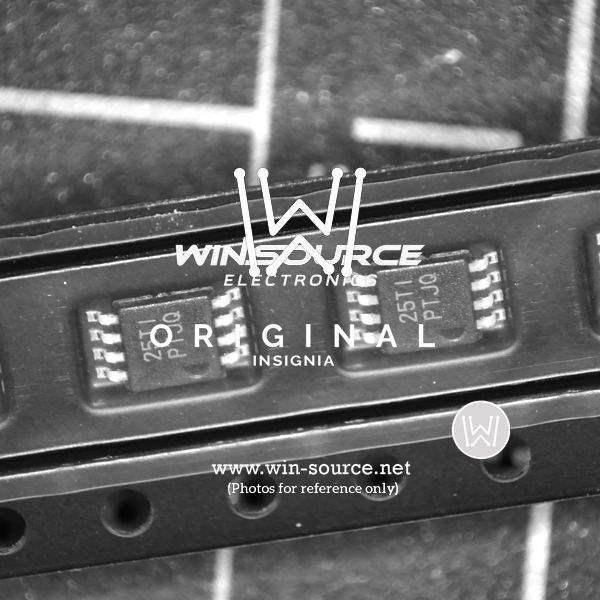

Overview of Texas Instruments TPS7A4901DGNT

The TPS7A4901DGNT is a high-precision, low-dropout voltage regulator designed by Texas Instruments to cater to a wide array of applications requiring a stable and clean power supply. This regulator is capable of delivering a continuous current of up to 150 mA and is optimized for high-accuracy, low-noise operations, making it an excellent choice for sensitive analog circuits, RF applications, and post-regulation for switching power supplies.

Key Features

• Output Voltage Range: The TPS7A4901DGNT offers an adjustable output voltage range from 1.2 V to 5.5 V, which can be set with external resistors. This flexibility allows designers to use the same part for different voltage requirements, simplifying inventory and design considerations.
• Low Dropout: With a low dropout voltage, this regulator maintains its ability to provide a stable output even when the input-to-output voltage differential is minimal, enhancing the efficiency of the overall system.
• Low Noise: The device exhibits an exceptionally low output noise of 17 μVRMS over a 10 Hz to 100 kHz bandwidth, which is crucial for RF and precision analog applications that demand a noise-free power supply.
• High Accuracy: The output voltage is highly accurate with a tolerance of only ±1% over line, load, and temperature variations, ensuring reliable and consistent performance.
• Thermal Protection: TPS7A4901DGNT includes an over-temperature protection feature that safeguards the device and the system from damage due to excessive heat.
• Stability: The regulator is stable with ceramic capacitors, which are preferred in modern electronic designs due to their small size and reliability.

Applications

The TPS7A4901DGNT is versatile and can be used in a multitude of applications, such as:

• High-precision analog circuits
• RF and wireless infrastructure
• Medical equipment
• Test and measurement systems
• Post-regulation for switching power supplies

With its combination of features, the TPS7A4901DGNT from Texas Instruments is a robust solution for designers looking to enhance the performance and reliability of their power management systems.
