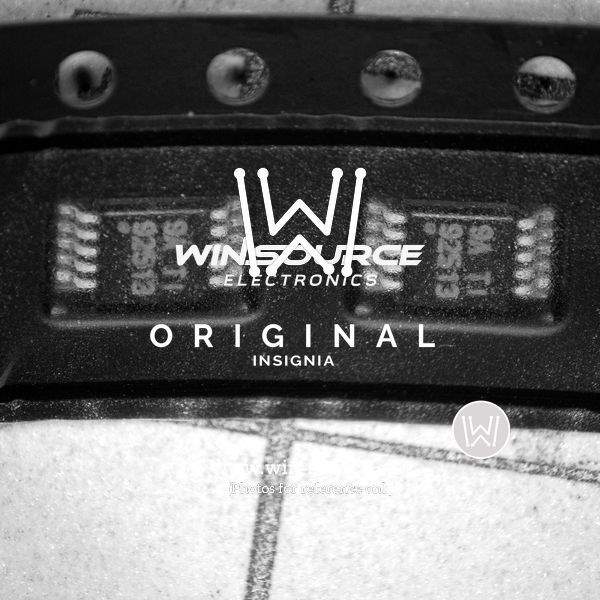

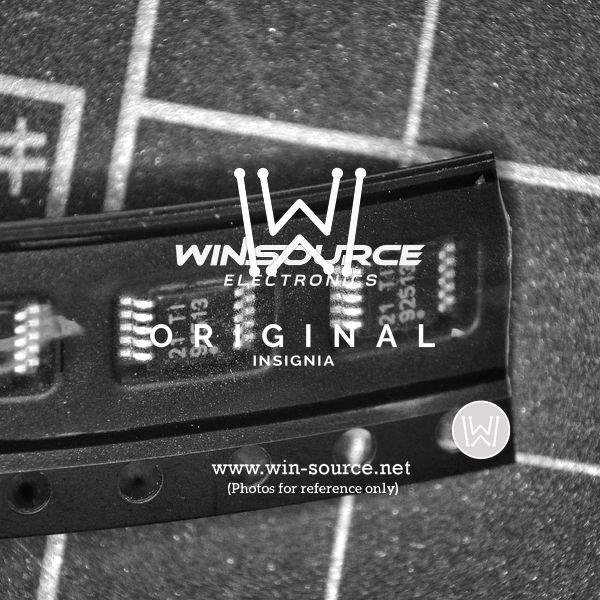

The TPS92513DGQR is a highly versatile and efficient LED driver integrated circuit designed by Texas Instruments, a leader in semiconductor solutions. This advanced LED driver is specifically engineered to meet the needs of a wide range of lighting applications, from automotive and industrial to general illumination.

Key Features

• Wide Input Voltage Range: The TPS92513DGQR operates over a broad input voltage range, making it suitable for various power supply conditions.
• Integrated MOSFET: It comes with an integrated 0.2-ohm, high-side N-channel MOSFET, which enhances its efficiency and reduces external component count.
• Adjustable Switching Frequency: Users can set the switching frequency from 200 kHz to 2.2 MHz, allowing flexibility in design to optimize for efficiency or component size.
• PWM Dimming Capability: This feature provides precise brightness control, which is essential for applications that require variable light output.
• Thermal Shutdown: The device includes thermal shutdown protection, ensuring safe operation under abnormal thermal conditions.
• Current Mode Control: This control method offers excellent transient response and simple loop compensation.

Applications

The TPS92513DGQR is ideal for a variety of applications, including:

• Automotive lighting systems
• Industrial and commercial lighting fixtures
• Street and area lighting
• Portable and battery-powered lighting

Product Specifications

The TPS92513DGQR offers a compact, efficient, and reliable solution for driving high-power LEDs with ease. Its robust design and feature-rich architecture make it an excellent choice for designers looking to create sophisticated lighting systems with high performance and reliability.
