Product Overview: TS5A23159RSERG4

The TS5A23159RSERG4 is a high-performance, dual single-pole double-throw (SPDT) analog switch from Texas Instruments, designed to deliver precision signal switching in a variety of applications. This device is a part of TI's extensive switch and multiplexer portfolio, known for their reliability and versatility in routing analog signals in numerous electronic systems.

Key Features

• Wide Voltage Range: The TS5A23159RSERG4 operates over a broad supply voltage range of 1.65V to 5.5V, making it compatible with a variety of logic levels and ensuring its flexibility in different circuit environments.
• Low On-State Resistance: With a typical on-state resistance of just 0.37 ohms, this analog switch provides minimal signal distortion and power loss, ensuring high fidelity in signal routing.
• Bidirectional Signal Flow: The switch supports bidirectional signal flow, allowing it to route signals in both directions through the switch, which is essential for many multiplexing tasks.
• Low Crosstalk and Off-Isolation: It features low crosstalk and high off-isolation, which minimizes signal interference and leakage between channels, thereby preserving signal integrity.
• ESD Protection: The device includes electrostatic discharge (ESD) protection circuitry, which safeguards the switch against damage from static electricity, enhancing its durability and lifespan.

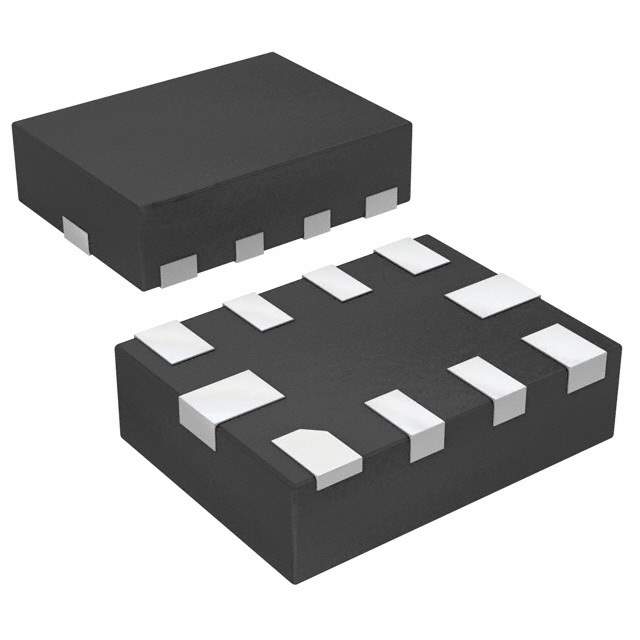

• Space-Saving Package: The TS5A23159RSERG4 comes in a compact QFN-10 package, which is ideal for space-constrained applications.

Applications

The TS5A23159RSERG4 is suitable for a wide range of applications, including but not limited to:

• Audio and video signal routing
• Data acquisition systems
• Communication systems
• Medical equipment
• Test and measurement instruments

Product Summary

The Texas Instruments TS5A23159RSERG4 analog switch combines high performance with practical features to meet the stringent requirements of modern electronic systems. Its low on-resistance, wide operating voltage range, and robust ESD protection make it an excellent choice for designers looking to implement reliable and efficient signal routing solutions. Whether used in consumer electronics or industrial applications, the TS5A23159RSERG4 stands out as a versatile component in any designer's toolkit.
