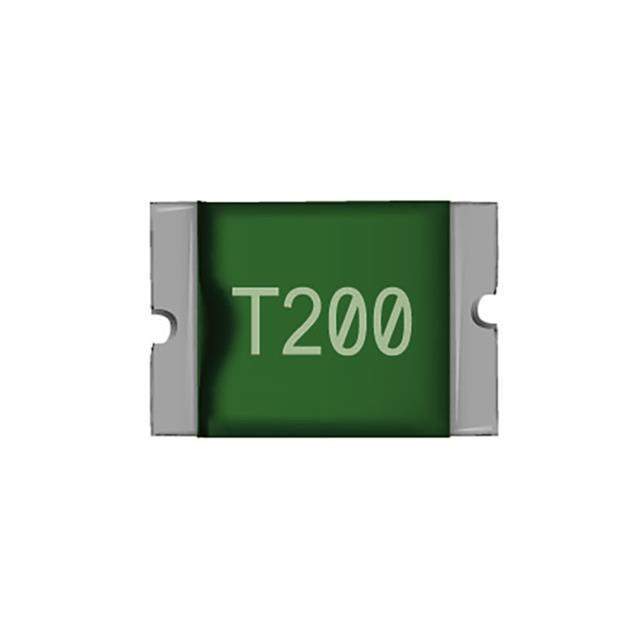

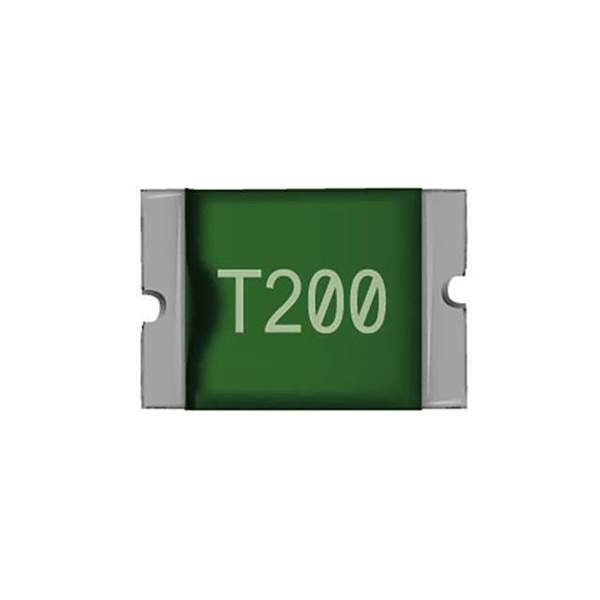

KMC5S050RY Real Image1 KMC5S050RY Real Image2
Same model may have multiple batches, images only for reference.
KMC5S050RY Real Image1 KMC5S050RY Real Image2
KMC5S050RY Real Image1 KMC5S050RY Real Image2
Same model may have multiple batches, images only for reference.

KMC5S050RY

Part No KMC5S050RY
Manufacturer Thinking Electronic Industrial Co.,Ltd
Catalog PTC Resettable Fuses
Description Polymer PTC 0.5A Resettable Fuse / Polymeric PTC Resettable Fuse 16V 500 mA Ih Surface Mount 1812 (4532 Metric), Concave
Datasheet
KMC5S050RY Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>PTC Resettable Fuses
Mfr Thinking Electronic Industrial Co.,Ltd
Series KMC
Package Tape & Reel (TR)
Type Polymeric
Voltage - Max 16V
Current - Hold (Ih) (Max) 500 mA
Current - Trip (It) 1 A
Current - Max 100 A
Time to Trip 150 ms
Resistance - Initial (Ri) (Min) 150 mOhms
Resistance - Post Trip (R1) (Max) 1 Ohms
Temperature Range - Operating -40°C ~ 85°C
Ratings -
Mounting Type Surface Mount
Package / Case 1812 (4532 Metric), Concave
Size / Dimension 0.179" L x 0.128" W (4.55mm x 3.24mm)
Height - Seated (Max) -
Thickness (Max) 0.027" (0.68mm)
Lead Spacing -
Approval Agency cUL, TUV, UL
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
HTSUS 8504.50.4000
Standard Package 1 pcs
Win Source Part Number 1382426-KMC5S050RY
Ultra Librarian 3D Model Ultra Librarian KMC5S050RY CAD Model

Description

The KMC5S050RY is a polymeric PTC resettable fuse from the KMC series by Thinking Electronic Industrial Co., Ltd. It is designed for circuit protection applications and comes in a tape & reel package.

  • Dimensions: 0.179" L x 0.128" W (4.55mm x 3.24mm)
  • Maximum Thickness: 0.027" (0.68mm)
  • Maximum Voltage: 16V
  • Maximum Current: 100A
  • Hold Current: 500mA
  • Trip Current: 1A
  • Time to Trip: 150ms
  • Mounting Type: Surface Mount
  • Package/Case Size: 1812 (4532 Metric), concave
  • Operating Temperature: -40°C to 85°C
  • Initial Resistance: 150mOhms
  • Approval: cUL, TUV, UL
