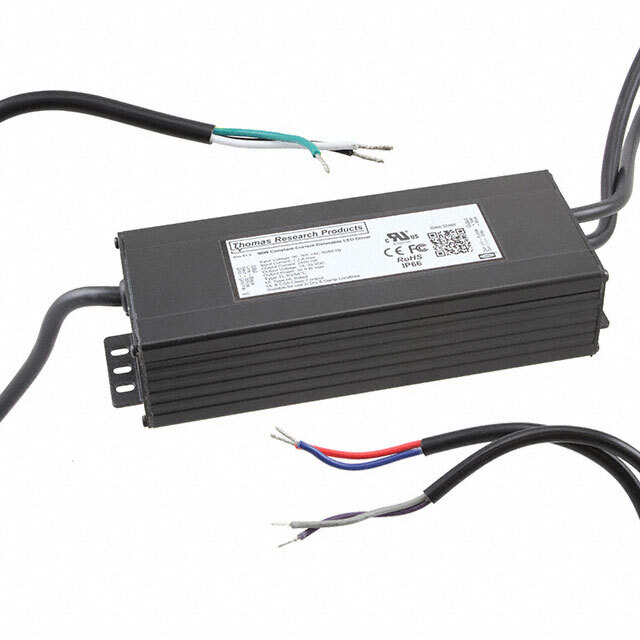

PLED75W-036-C2100-D Thomas Research Products – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

PLED75W-036-C2100-D

Part No PLED75W-036-C2100-D
Manufacturer Thomas Research Products
Catalog External/Internal (Off - Board) LED Drivers
Description LED DRIVER CC AC/DC 12-36V 2.1A
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Programmable Not Verified
Type Constant Current
Topology AC DC Converter
Number of Outputs 1
Voltage - Input (Min) 90VAC
Voltage - Input (Max) 305VAC
Voltage - Output 12 ~ 36V
Current - Output (Max) 2.1A
Power (Watts) 75 W
Dimming Analog
Features OCP, OVP, SCP
Ratings IP66, NEMA 6
Temperature Range - Operating -30°C ~ 65°C
Efficiency 89%
Termination Style Wire Leads
Size / Dimension 5.12" L x 2.33" W x 1.47" H (130.0mm x 59.2mm x 37.3mm)
Approval Agency CE, cULus
Package Box
Supply and Demand Status Shortage
Win Source Part Number 1572331-PLED75W-036-C2100-D
Ultra Librarian 3D Model Ultra Librarian PLED75W-036-C2100-D CAD Model
