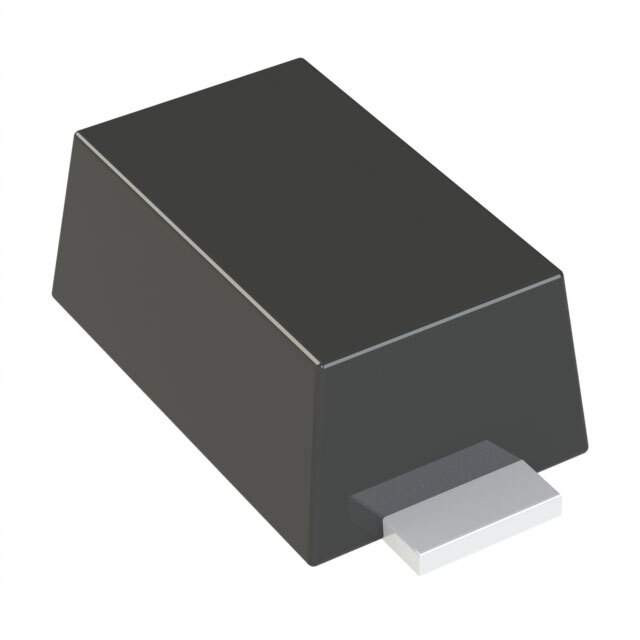

The CRZ39(TE85L) is a Zener diode manufactured by Toshiba Semiconductor and Storage. Zener diodes are a type of diode that allows current to flow in the forward direction in the same manner as an ideal diode, but also permits it to flow in the reverse direction when the voltage is above a certain value known as the Zener voltage. This characteristic makes them particularly useful in voltage regulation and overvoltage protection circuits.

Applications

• Voltage Regulation: Maintaining a stable voltage output for sensitive electronic components.
• Overvoltage Protection: Protecting circuits from voltage spikes or surges.
• Clipping Circuits: Shaping waveforms by limiting voltage levels.
• Voltage References: Providing a known voltage for comparison in circuits.
• Transient Voltage Suppression: Protecting circuits from sudden voltage transients.

Features

• Zener Voltage: The specific reverse breakdown voltage at which the diode starts conducting. The '39' in the part number suggests a Zener voltage around 39V, though the datasheet should be consulted for the exact value.
• Low Reverse Leakage Current: Minimal current flow in the reverse direction below the Zener voltage.
• Sharp Breakdown Characteristics: Provides a well-defined voltage regulation point.
• High Surge Current Capability: Ability to withstand high current surges without damage.
• Surface Mount Package: Typically available in a small surface-mount package for automated assembly.

Benefits

• Precise Voltage Regulation: Ensures stable and reliable operation of electronic circuits.
• Effective Overvoltage Protection: Prevents damage to sensitive components from voltage surges.
• Compact Size: Allows for integration into space-constrained designs.
• Improved Circuit Reliability: Protects against voltage variations and transients, increasing overall system robustness.
• Cost-Effective Solution: Provides a simple and efficient way to protect circuits from overvoltage conditions.

The CRZ39(TE85L) is commonly used in various electronic applications where voltage regulation or overvoltage protection is required. It's important to consult the official Toshiba datasheet for the specific Zener voltage, power dissipation, and other critical parameters to ensure it's suitable for the intended application. The TE85L suffix likely indicates a specific packaging or taping option for automated assembly.

Additional Details: Typical specifications to confirm in the datasheet include Zener voltage tolerance, dynamic impedance, reverse current, and power dissipation. The operating temperature range and storage temperature range are also crucial parameters to consider for ensuring long-term reliability.
