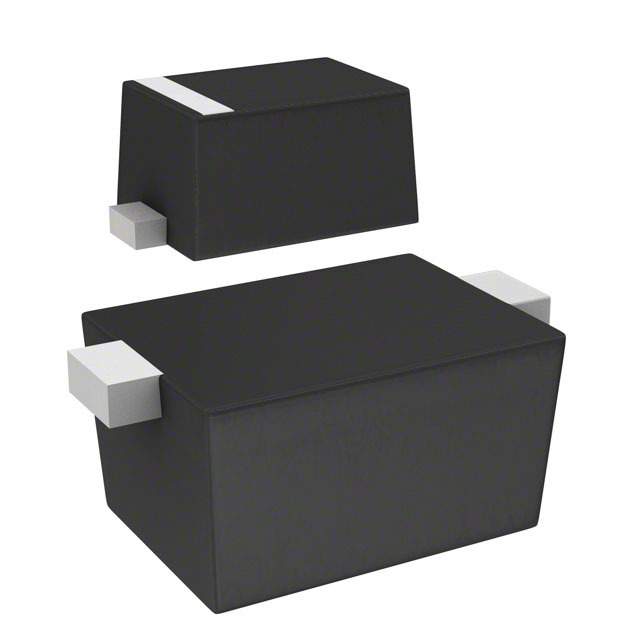

Same model may have multiple batches, images only for reference.
JDP2S02AFS(TPL3) Toshiba Semiconductor and Storage
Same model may have multiple batches, images only for reference.

JDP2S02AFS(TPL3)

Part No JDP2S02AFS(TPL3)
Manufacturer Toshiba Semiconductor and Storage
Catalog RF Diodes
Description DIODE PIN 30V 50MA FSC
Datasheet
JDP2S02AFS(TPL3) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Toshiba Semiconductor and Storage
Packaging Reel - TR
Status Active
Diode Type PIN - Single
Voltage - Peak Reverse (Max) 30V
Current - Max 50mA
Capacitance @ Vr, F 0.4pF @ 1V, 1MHz
Resistance @ If, F 1.5 Ohm @ 10mA, 100MHz
Temperature Range - Operating 150°C (TJ)
Case / Package fSC
Win Source Part Number 100344-JDP2S02AFS(TPL3)
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian JDP2S02AFS(TPL3) CAD Model

Description

The Toshiba Semiconductor and Storage 100344-JDP2S02AFS(TPL3) is an active electronic component.

  • Type: PIN - single diode
  • Popularity: medium
  • It is manufactured by Toshiba and is suitable for various applications.
