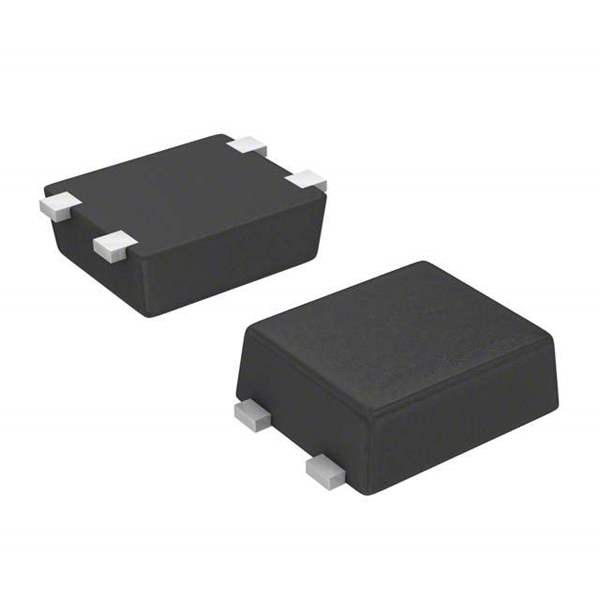

JDP4P02AT(TE85L) Toshiba Semiconductor and Storage
Same model may have multiple batches, images only for reference.

JDP4P02AT(TE85L)

Part No JDP4P02AT(TE85L)
Manufacturer Toshiba Semiconductor and Storage
Catalog RF Diodes
Description SWITCHING DIODE 30V INDEPENDENT
Datasheet
JDP4P02AT(TE85L) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Toshiba Semiconductor and Storage
Packaging Reel - TR
Status Obsolete(EOL)
Diode Type PIN - 2 Independent
Voltage - Peak Reverse (Max) 30V
Current - Max 50mA
Capacitance @ Vr, F 0.4pF @ 1V, 1MHz
Resistance @ If, F 1.5 Ohm @ 10mA, 100MHz
Temperature Range - Operating 150°C (TJ)
Case / Package TESQ
Win Source Part Number 106972-JDP4P02AT(TE85L)
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian JDP4P02AT(TE85L) CAD Model

Description

Toshiba Semiconductor and Storage has manufactured the electronic component with Id 173121.

  • It is a PIN diode with 2 independent diodes.
  • Maximum current: 50mA
  • Peak reverse voltage: 30V
  • Capacitance: 0.4pF @ 1V and 1MHz
  • Resistance: 1.5 Ohm @ 10mA and 100MHz
  • Product status: obsolete (EOL)
  • Popularity: medium
