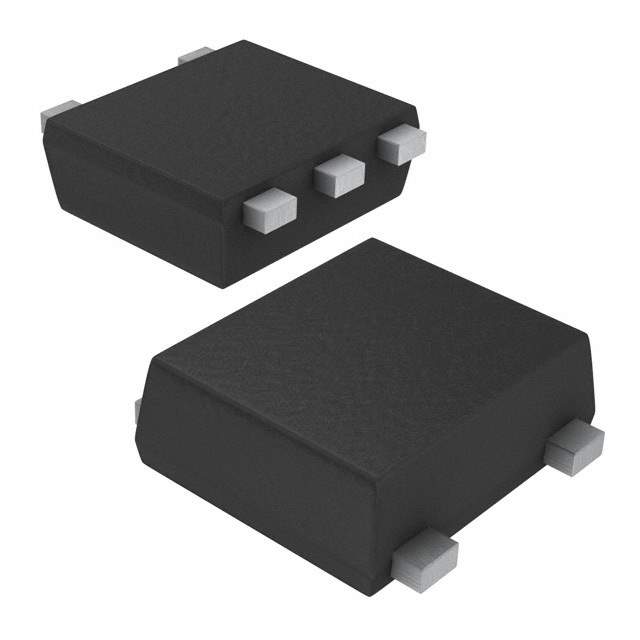

The SSM5G10TU is a P-channel MOSFET from Toshiba Semiconductor and Storage. It is designed for load switching and power management applications requiring low on-resistance and efficient operation. This MOSFET is available in a small surface-mount package, making it suitable for compact electronic devices.

Applications:

• Load Switching: Used to control the power supply to different parts of a circuit.
• Power Management: Employed in battery-powered devices for efficient power regulation.
• DC-DC Conversion: Can be utilized in DC-DC converters for voltage regulation.
• Portable Devices: Ideal for use in smartphones, tablets, and other portable electronics.

Features:

• Low On-Resistance: Reduces power loss and improves efficiency.
• Small Surface-Mount Package: Enables compact designs.
• P-Channel MOSFET: Suitable for high-side switching applications.
• High-Speed Switching: Allows for fast and efficient switching operations.

Benefits:

• Increased Efficiency: Low on-resistance minimizes power dissipation, leading to higher efficiency.
• Compact Design: Small package size allows for integration into space-constrained applications.
• Improved Thermal Performance: Reduces heat generation, enhancing the reliability of the system.
• Simplified Circuit Design: P-channel configuration simplifies high-side switching implementations.

Additional Details:

The SSM5G10TU features a low gate threshold voltage, enabling it to be driven by low-voltage logic circuits. It also offers good avalanche ruggedness, providing protection against voltage spikes. The device is RoHS compliant, ensuring environmental friendliness. The typical drain-source on-resistance is very low, contributing to minimal power loss during operation. This MOSFET is designed to operate over a wide temperature range, making it suitable for various environmental conditions. The gate-source voltage rating ensures safe operation within specified limits.
