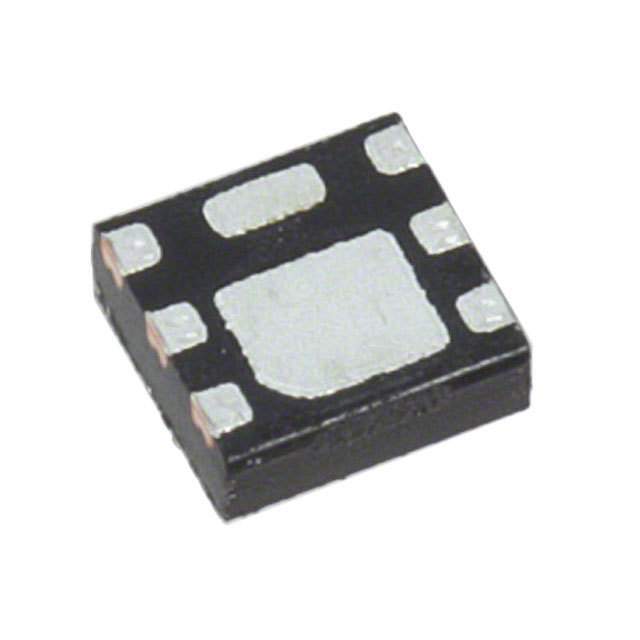

SSM6K513NU,LF

Name: SSM6K513NU,LF
Brand: Toshiba Semiconductor and Storage
SKU: 519120
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	SSM6K513NU,LF
Manufacturer	Toshiba Semiconductor and Storage
Catalog	Transistors - FETs, MOSFETs - RF
Description	MOSFET NCH 30V 15A UDFNB
Datasheet	SSM6K513NU,LF Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Discrete Semiconductor Products
Manufacturer	Toshiba Semiconductor and Storage
Packaging	Reel - TR
Status	Active
Polarity	N-Channel
Technology	MOSFET
Drain-Source Breakdown Voltage	30V
Continuous Drain Current at 25°C	15A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Gate-Source Threshold Voltage	2.1V @ 100μA
Max Gate Charge	7.5nC @ 4.5V
Max Input Capacitance	1130pF @ 15V
Maximum Gate-Source Voltage	±20V
Power Dissipation (Max)	1.25W (Ta)
Maximum Rds On at Id,Vgs	8.9 mOhm @ 4A, 10V
Temperature Range - Operating	150°C (TA)
Mounting	SMD (SMT)
Case / Package	6-UDFNB (2x2)
Dimension	6-WDFN Exposed Pad
Win Source Part Number	1102320-SSM6K513NU,LF
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Sufficient
Family Name	SSM6K513NU
ECCN	EAR99
Country of Origin	Thailand
Estimated EOL Date	2026
Ultra Librarian 3D Model	Ultra Librarian SSM6K513NU,LF CAD Model

Alternative Products

Description

The SSM6K513NU is an N-Channel MOSFET manufactured by Toshiba Semiconductor and Storage.

Drain-Source Breakdown Voltage: 30V
Continuous Drain Current: 15A @ 25°C
Gate-Source Threshold Voltage: 2.1V @ 100μA
Maximum Gate Charge: 7.5nC @ 4.5V
Maximum Input Capacitance: 1130pF @ 15V
Maximum Rds On @ Id, Vgs: 8.9 mOhm @ 4A, 10V
