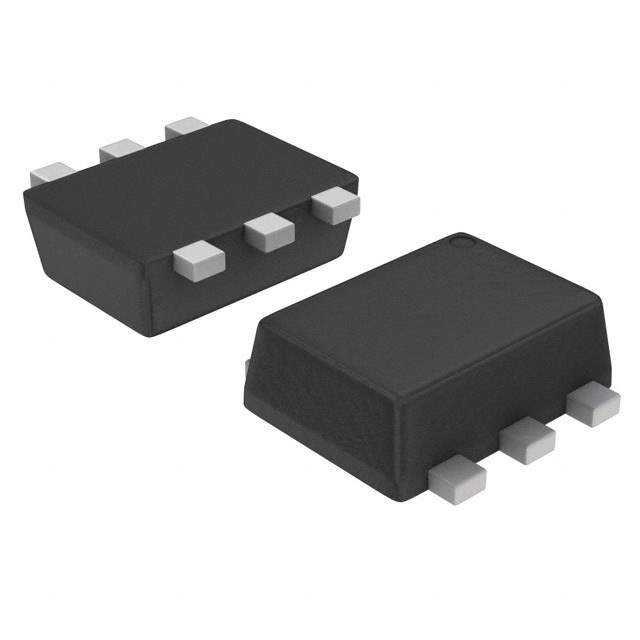

The SSM6P15FE is a P-channel MOSFET manufactured by Toshiba Semiconductor. It is designed for load switch applications, power management circuits, and other general-purpose switching applications. Its low on-resistance contributes to energy efficiency by minimizing power loss.

Applications

• Load switches: Controlling power supply to different parts of a circuit
• Power management circuits: DC-DC converters, battery chargers
• Portable devices: Smartphones, tablets, wearables
• DC-DC converters: Step-up and step-down voltage conversion
• Battery chargers: Controlling charging current and voltage

Features

• P-channel MOSFET: Suitable for high-side switching applications
• Low on-resistance (RDS(on)): Minimizes power loss during switching
• Low gate threshold voltage (VGS(th)): Enables operation with low voltage drive circuits
• Small package size: Compact design for space-constrained applications
• RoHS compliant: Environmentally friendly

Benefits

• Improved energy efficiency: Low on-resistance reduces power dissipation
• Simplified circuit design: Easy to integrate into existing circuits
• Reduced component size: Compact package saves board space
• Extended battery life: Lower power consumption increases run time for portable devices
• Environmentally friendly: RoHS compliance ensures reduced hazardous substance content

Additional Details

The SSM6P15FE's key specifications include its drain-source voltage (VDS), gate-source voltage (VGS), drain current (ID), and on-resistance (RDS(on)). The datasheet provides graphs of these parameters versus temperature and gate voltage. Switching times (turn-on and turn-off delays) are also crucial for high-frequency applications. The package type (e.g., SOT-23, TSOP) influences its mounting and thermal characteristics. Gate charge (Qg) is important for understanding the driving requirements. Safe operating area (SOA) graphs describe the limits of simultaneous voltage and current.
