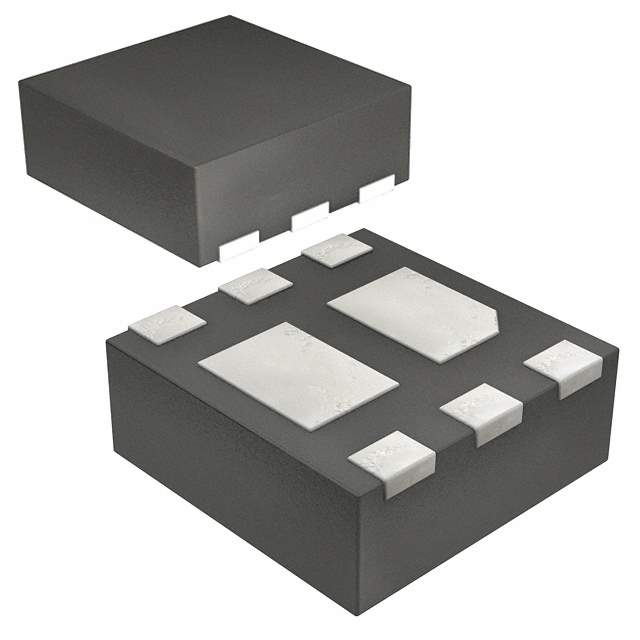

SSM6P49NU,LF Real Image
Same model may have multiple batches, images only for reference.

SSM6P49NU,LF

Part No SSM6P49NU,LF
Manufacturer Toshiba Semiconductor and Storage
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET 2P-CH 20V 4A 2-1Y1A
Datasheet
SSM6P49NU,LF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Toshiba Semiconductor and Storage
Packaging Reel - TR
Status Active
FET Type 2 P-Channel (Dual)
FET Feature Logic Level Gate
Drain-Source Breakdown Voltage 20V
Continuous Drain Current at 25°C 4A
Maximum Rds On at Id,Vgs 45 mOhm @ 3.5A, 10V
Gate-Source Threshold Voltage 1.2V @ 1mA
Max Gate Charge 6.74nC @ 4.5V
Max Input Capacitance 480pF @ 10V
Maximum Power Dissipation 1W
Temperature Range - Operating 150°C (TJ)
Mounting SMD (SMT)
Case / Package 6-UDFN (2x2)
Win Source Part Number 098717-SSM6P49NU,LF
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian SSM6P49NU,LF CAD Model

Description

The SSM6P49NU,LF is an electronic component manufactured by Toshiba Semiconductor and Storage.

  • Product Type: 2 P-Channel (Dual) FET
  • Feature: logic level gate
  • Mounting Type: SMD (SMT)
  • Packaging: reel - TR
  • Category: discrete semiconductor products
  • Status: active
  • Popularity: medium
  • Win Source Part Number: 098717-SSM6P49NU,LF
  • Case/Package: 6-UDFN (2x2)
  • Maximum Power Dissipation: 1W
  • Drain-Source Breakdown Voltage: 20V
  • Continuous Drain Current at 25°C: 4A
  • Gate-Source Threshold Voltage: 1.2V @ 1mA
  • Max Gate Charge: 6.74nC @ 4.5V
  • Max Input Capacitance: 480pF @ 10V
  • Maximum Rds On at Id,Vgs: 45 mOhm @ 3.5A, 10V
