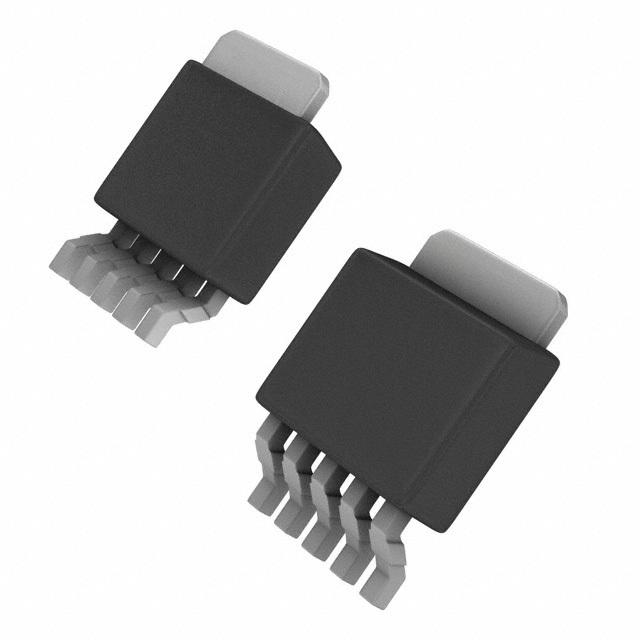

Same model may have multiple batches, images only for reference.
TA48S00AF(T6L1,Q) Toshiba Semiconductor and Storage
Same model may have multiple batches, images only for reference.

TA48S00AF(T6L1,Q)

Part No TA48S00AF(T6L1,Q)
Manufacturer Toshiba Semiconductor and Storage
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LDO ADJ 1A 5HSIP
Datasheet
TA48S00AF(T6L1,Q) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Toshiba Semiconductor and Storage
Packaging Cut Reel
Output Type Adjustable
Number of Regulators 1
Maximum Input Voltage 16V
Nominal Output Voltage (Min/Fixed) 1.5V
Maximum Output Voltage 9V
Dropout Voltage-Max 0.69V @ 1A (Typ)
Output Current 1A
Operating Supply Current 1.7mA to 20mA
PSRR 63dB (120Hz)
Control Features Enable
Protection Features Over Current, Over Temperature
Temperature Range - Operating -40°C to 150°C
Regulator Topology Positive Adjustable
Output Voltage 1.5 V to 9 V
Voltage - Dropout (Typical) 0.69V @ 1A
Mounting SMD (SMT)
Case / Package 5-HSIP
Win Source Part Number 111331-TA48S00AF(T6L1,Q)
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian TA48S00AF(T6L1,Q) CAD Model

Description

The Toshiba Semiconductor and Storage TA48S00AF(T6L1,Q) Positive Adjustable Regulator is a high-quality component that can be used in various electronic applications.

  • Output Current: 1A
  • Output Voltage Range: 1.5 V to 9 V
  • Control Feature: enable control feature
  • Protection Features: over current and over temperature protection features
  • Dropout Voltage: 0.69V @ 1A (Typ)
  • PSRR: 63dB (120Hz)
  • Temperature Range: -40°C to 150°C
