The TC4S69F(TE85L) is a single-gate CMOS inverter manufactured by Toshiba Semiconductor and Storage. This device offers a high-speed operation and low power consumption, making it suitable for various digital logic applications where signal inversion is required with minimal impact on the power budget. It is supplied in a thin leadframe package.

Applications:

• Wave shaping circuits: Used to convert signals into more standardized shapes.
• Simple inverters: For basic logic inversion in digital circuits.
• Oscillators: As part of a feedback network to generate oscillating signals.
• Clock drivers: Providing a clean inverted clock signal to different circuit components.
• Buffering: To isolate circuits and improve drive strength.

Features:

• Single Inverter: Contains one independent inverter gate.
• CMOS Technology: Utilizes CMOS technology for low power consumption and high noise immunity.
• High Speed Operation: Offers fast switching speeds suitable for many digital applications.
• Wide Operating Voltage: Can operate over a range of supply voltages, offering flexibility in circuit design.
• Small Package: Supplied in a small package, making it suitable for high-density circuit boards.

Benefits:

• Reduced Power Consumption: CMOS technology minimizes power consumption, leading to longer battery life in portable devices and reduced heat dissipation in densely packed circuits.
• Improved Signal Integrity: The inverter's high-speed operation ensures that signals are processed quickly and accurately, maintaining signal integrity throughout the circuit.
• Simplified Circuit Design: The single inverter gate simplifies circuit design and reduces the number of components required.
• Enhanced Noise Immunity: CMOS technology provides high noise immunity, ensuring reliable operation in noisy environments.
• Compact Design: The small package allows for use in space-constrained applications.

Additional Details:

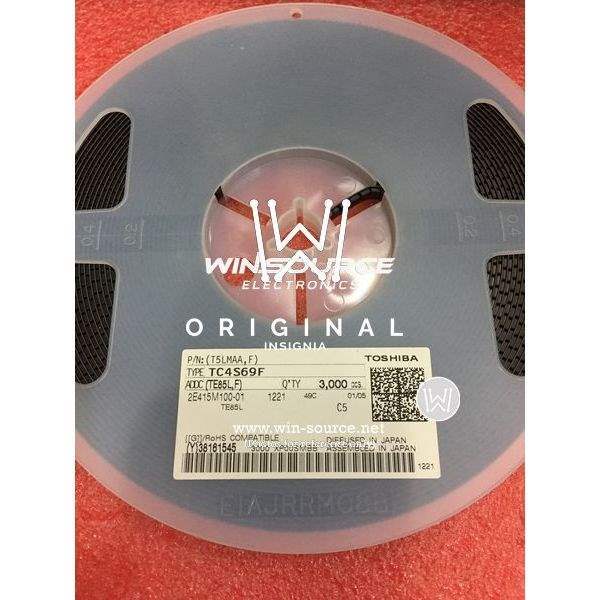

The specific characteristics such as propagation delay and supply voltage range can be found in the device's datasheet. The TC4S69F(TE85L) is often used in conjunction with other logic gates to implement more complex digital functions. The TE85L refers to the specific packaging and taping specification for automated assembly processes.
