The TC7SH00FSTPL3 is a NAND gate that belongs to the Integrated Circuits family.

• GPTDescription: It is manufactured by Toshiba Semiconductor and Storage and is available @ Win Source.
• GPTDescription: This product is obsolete(EOL) and has a medium popularity.

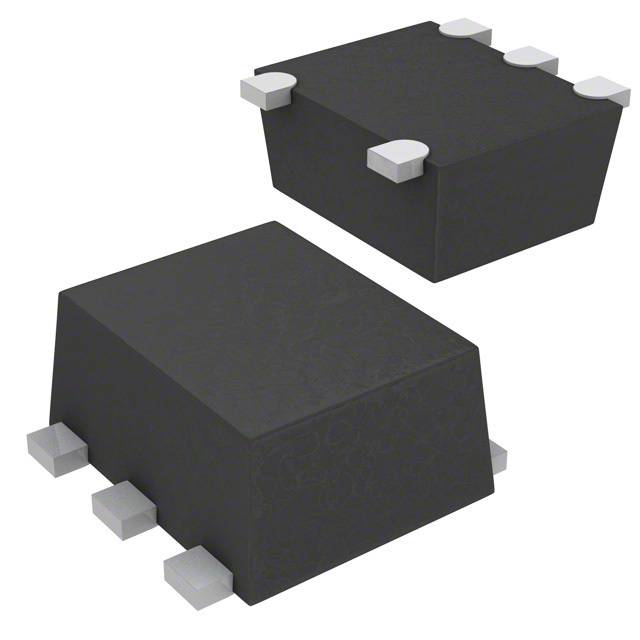

• GPTDescription: This product is packaged in fSV and has a dimension of SOT-953.
• GPTDescription: It has a current output high and low of 8mA, 8mA and an operating supply voltage of 2 V to 5.5 V.
• GPTDescription: The logic level - low and high are 0.5V and 1.5V respectively.
• GPTDescription: It has a maximum propagation delay of 7.5ns @ 5V with a maximum CL of 50pF.
• GPTDescription: The current quiescent (max) is 2μA.
