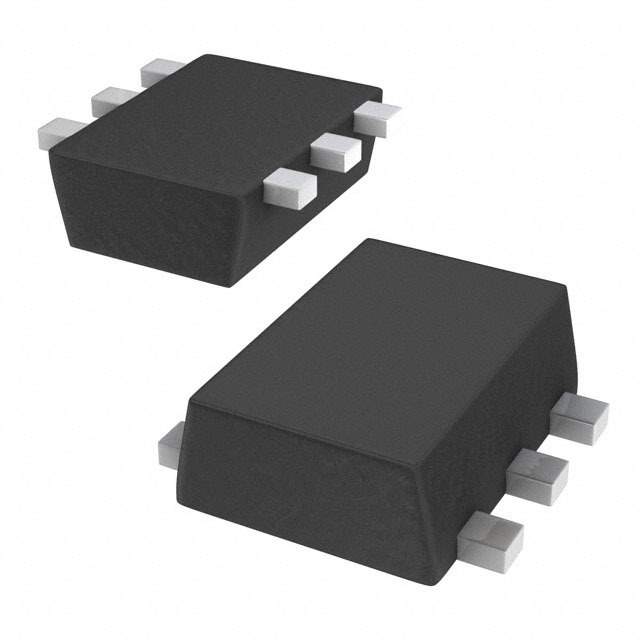

The TC7SPN3125TU is a single-channel, high-speed CMOS analog switch manufactured by Toshiba Semiconductor and Storage. This switch is designed for low-voltage operation and features low on-resistance, making it suitable for a wide range of analog and digital switching applications.

Applications:

• Analog Signal Switching: Used to switch analog signals in audio and video equipment, test and measurement instruments, and data acquisition systems.
• Data Multiplexing/Demultiplexing: Employed in data multiplexers and demultiplexers to route data signals.
• Sample-and-Hold Circuits: Integrated into sample-and-hold circuits for data acquisition and signal processing.
• Battery-Powered Devices: Well-suited for portable devices due to its low power consumption and low voltage operation.
• Communication Systems: Utilized in communication systems for signal routing and switching.

Features:

• Single-Channel SPST Switch: Provides a single-pole, single-throw (SPST) switch configuration.
• Low On-Resistance: Features low on-resistance, minimizing signal attenuation and distortion.
• High-Speed Switching: Offers fast switching speeds, enabling high-performance signal routing.
• Low Voltage Operation: Designed for low-voltage operation, typically in the range of 1.65V to 5.5V.
• Low Power Consumption: Consumes very little power, making it suitable for battery-powered applications.
• CMOS Technology: Fabricated using CMOS technology for high performance and low power consumption.
• Small Package: Available in a small package, ideal for space-constrained applications.

Benefits:

• Minimal Signal Loss: Low on-resistance ensures minimal signal loss and distortion.
• Fast Signal Routing: High-speed switching allows for fast signal routing and multiplexing.
• Extended Battery Life: Low power consumption contributes to extended battery life in portable devices.
• Space Saving: Small package size allows for integration into small and densely populated circuit boards.
• Versatile Application: Suitable for a wide range of analog and digital switching applications.

Additional Details:

The TC7SPN3125TU's control input voltage determines the on/off state of the switch. A logic high signal on the control input typically turns the switch on, while a logic low signal turns it off. The specific logic levels are defined in the datasheet.

The switch's bandwidth and signal integrity should be considered when selecting it for high-frequency applications. The datasheet provides information on these parameters.

ESD protection is integrated into the TC7SPN3125TU to protect it from electrostatic discharge events. However, proper ESD handling procedures should still be followed when working with the device.
