The TC7WPB9306FC(TE85L is a dual-bit configurable multiple functions gate from Toshiba Semiconductor and Storage. This device is designed for flexible logic implementations in various digital systems, offering multiple logic functions in a single package, configurable via control inputs.

Applications:

• Logic Gate Replacement: Used to replace multiple discrete logic gates, reducing component count and board space.
• Programmable Logic Functions: Enables the implementation of various logic functions through configuration inputs.
• Signal Routing: Can be used for signal routing and multiplexing in digital circuits.
• General Purpose Logic: Suitable for various general-purpose logic applications in digital systems.

Features:

• Dual-Bit Configurable: Offers two independent configurable logic functions.
• Multiple Logic Functions: Supports various logic functions such as AND, OR, NAND, NOR, XOR, and XNOR.
• Wide Operating Voltage Range: Supports a wide range of supply voltages for compatibility with various logic families.
• Low Power Consumption: Minimizes power consumption in battery-powered applications.

Benefits:

• Reduced Component Count: Integrates multiple logic functions into a single package, reducing component count and simplifying circuit design.
• Flexibility: Offers flexibility in logic design by allowing the selection of different logic functions.
• Voltage Level Compatibility: Compatible with a wide range of supply voltages.
• Compact Design: The small package size allows for integration into space-constrained applications.

Additional Details:

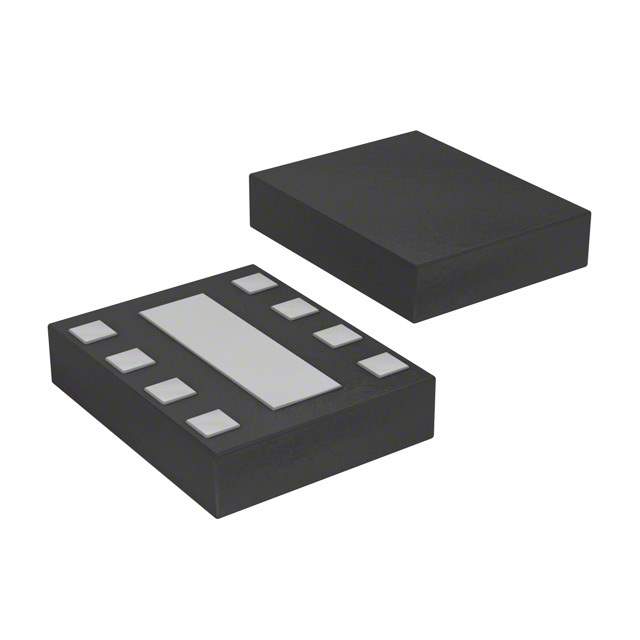

The TC7WPB9306FC(TE85L is available in a small surface-mount package, making it suitable for automated assembly processes. It is compliant with RoHS environmental standards. It is frequently utilized in applications where flexibility and space-saving are important considerations, such as portable devices, consumer electronics, and industrial control systems. The datasheet provides comprehensive details on the device's electrical characteristics, timing specifications, configuration options, and application guidelines.
