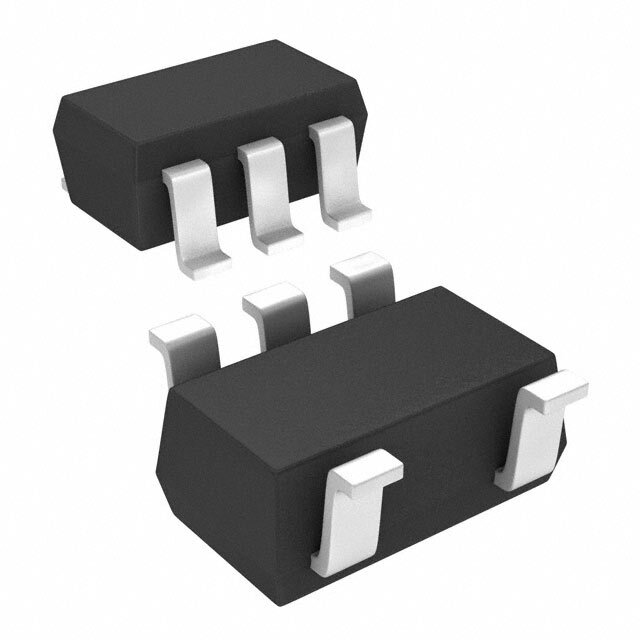

The TCR2EF115,LM(CT is a low-dropout (LDO) regulator from Toshiba Semiconductor and Storage. It is designed to provide a stable output voltage even when the input voltage is close to the output voltage. This LDO regulator is suitable for use in a wide range of applications. It features a small package size and low quiescent current.

Applications:

• Mobile Devices
• Wearable Devices
• Portable Electronics
• Battery-Powered Devices
• Microcontroller Power Supplies

Features:

• Output Voltage: 1.15 V
• Output Current: 200 mA
• Low Dropout Voltage
• Low Quiescent Current
• Small Package (DFN4)
• Overcurrent Protection

Benefits:

• Stable Output Voltage: Provides a stable and accurate output voltage, even with variations in input voltage and load current.
• Long Battery Life: Low quiescent current minimizes power consumption, extending battery life in portable devices.
• Small Size: Compact package allows for high-density mounting on printed circuit boards.
• Overcurrent Protection: Protects the regulator and the load from damage due to overcurrent conditions.
• Simple Design: Requires minimal external components for operation.

Additional Details:

The TCR2EF115,LM(CT LDO regulator is designed to provide a stable 1.15V output voltage with a maximum output current of 200mA. The low dropout voltage allows the regulator to operate with a small difference between the input and output voltages, which is important in battery-powered applications. The low quiescent current minimizes power consumption when the regulator is not supplying current to the load. The small DFN4 package allows for high-density mounting on printed circuit boards. The overcurrent protection feature protects the regulator and the load from damage due to overcurrent conditions. This LDO is suitable for various applications. The device is RoHS compliant.
