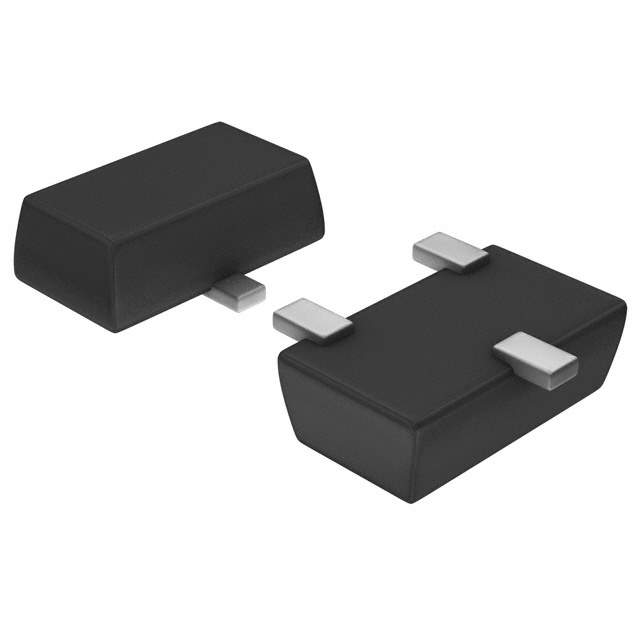

TCS20DLR Real Image
Same model may have multiple batches, images only for reference.

TCS20DLR

Part No TCS20DLR
Manufacturer Toshiba Semiconductor and Storage
Catalog Magnetic Sensors - Switches (Solid State)
Description MAGNETIC SWITCH OMNIPOLAR SOT23F
Datasheet
TCS20DLR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Toshiba Semiconductor and Storage
Packaging Reel - TR
Status Obsolete(EOL)
Purpose Omnipolar Switch
Technology Hall Effect
Polarization Either
Sensing Range ±4.4mT Trip, ±0.9mT Release
Testing Conditions 25°C
Supply Voltage - Operating 2.3 V to 5.5 V
Current - Supply (Max) 1.6mA (Typ)
Current - Output (Max) 5mA
Output Type Open Drain
Temperature Range - Operating -40°C to 85°C (TA)
Case / Package SOT-23F
Win Source Part Number 360673-TCS20DLR
Family Name TCS20DLR
Introduction Date May 24, 2010
ECCN EAR99
Estimated EOL Date 2023
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian TCS20DLR CAD Model

Description

The Toshiba Semiconductor and Storage TCS20DLR is a hall effect sensor with an open drain output type. Bold the product name (e.g., BAV99S,135 → TCS20DLR) and manufacturer (e.g., Nexperia USA Inc. → Toshiba Semiconductor and Storage).

  • Output Type: open drain
  • Sensing Range: ±4.4mT Trip, ±0.9mT Release
  • Supply Voltage Range: 2.3V to 5.5V
  • Current Consumption: 1.6mA (Typ)
  • Current Output: 5mA (Max)
  • Application: omnipolar switch
  • Case/Package: SOT-23F
  • Supply and Demand Status: balanced
