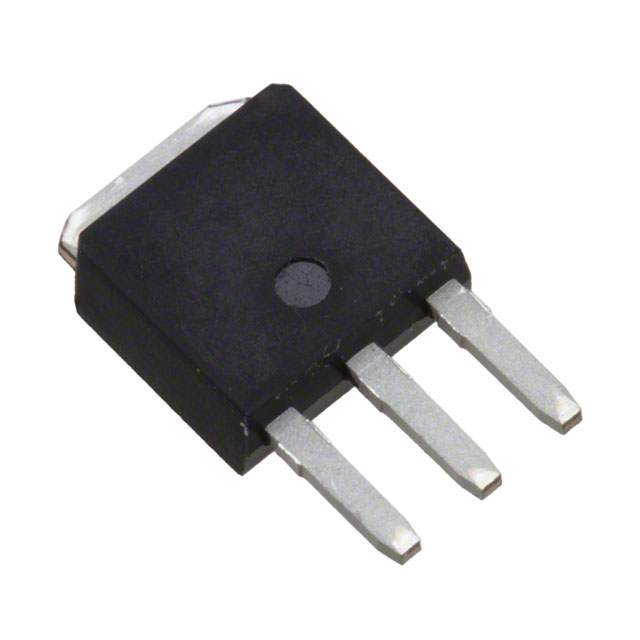

Same model may have multiple batches, images only for reference.

TK8Q60W,S1VQ

Name: TK8Q60W,S1VQ
Brand: Toshiba Semiconductor and Storage
SKU: 465817
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	TK8Q60W,S1VQ
Manufacturer	Toshiba Semiconductor and Storage
Catalog	Transistors - FETs, MOSFETs - RF
Description	MOSFET N CH 600V 8A IPAK
Datasheet	TK8Q60W,S1VQ Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Discrete Semiconductor Products
Manufacturer	Toshiba Semiconductor and Storage
Packaging	Tube/Rail
Status	Active
Polarity	N-Channel
Technology	MOSFET
Drain-Source Breakdown Voltage	600V
Continuous Drain Current at 25°C	8A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	10V
Gate-Source Threshold Voltage	3.7V @ 400μA
Max Gate Charge	18.5nC @ 10V
Max Input Capacitance	570pF @ 300V
Maximum Gate-Source Voltage	±30V
FET Feature	Super Junction
Power Dissipation (Max)	80W (Tc)
Maximum Rds On at Id,Vgs	500 mOhm @ 4A, 10V
Temperature Range - Operating	150°C (TJ)
Mounting	Through Hole
Case / Package	I-Pak
Dimension	TO-251-3 Stub Leads, IPak
Win Source Part Number	1050572-TK8Q60W,S1VQ
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian TK8Q60W,S1VQ CAD Model

Alternative Products

Description

The TK8Q60W,S1VQ is a MOSFET electronic component manufactured by Toshiba Semiconductor and Storage.

Polarity: N-channel
Power Dissipation: 80W (Tc)
Temperature Range: 150°C (TJ)
Drain-Source Breakdown Voltage: 600V
Continuous Drain Current @ 25°C: 8A (Ta)
Gate-Source Threshold Voltage: 3.7V @ 400μA
Maximum Gate Charge: 18.5nC @ 10V
Maximum Input Capacitance: 570pF @ 300V
Maximum Gate-Source Voltage: ±30V
Maximum Rds On @ Id,Vgs: 500 mOhm @ 4A, 10V
