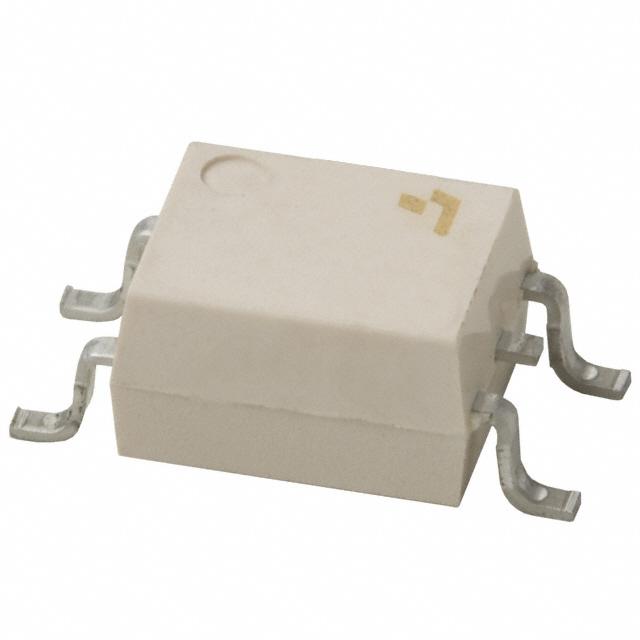

The TLP168J is a high-performance photorelay from Toshiba Semiconductor and Storage, designed for a wide array of applications requiring electrical isolation and reliable switching. This photorelay integrates a GaAlAs infrared light-emitting diode (LED) on the input side, optically coupled to a MOSFET on the output side. This configuration allows for control of the output circuit without any direct electrical connection, providing excellent isolation and noise immunity.

Applications

• Security Systems: Used for isolating control circuits in alarm systems and access control panels.
• Industrial Control: Employed in programmable logic controllers (PLCs) and other industrial automation equipment for switching signals safely.
• Medical Equipment: Found in devices requiring high isolation to protect patients and sensitive electronics.
• Test and Measurement Equipment: Used in automated test equipment (ATE) and data acquisition systems.
• Solid State Relays (SSR): Can be used as a replacement for electromechanical relays, providing faster switching speeds and longer lifespans.

Features

• High Isolation Voltage: Offers a high isolation voltage rating, ensuring safe operation in high-voltage environments.
• Low On-Resistance: Features a low on-resistance, minimizing voltage drop and power dissipation across the relay.
• Fast Switching Speed: Provides fast turn-on and turn-off times, enabling high-frequency switching applications.
• Compact Package: Available in a small surface-mount package, saving board space.
• Solid State Reliability: Offers enhanced reliability and lifespan compared to traditional electromechanical relays.

Benefits

• Enhanced Safety: Provides electrical isolation between the input and output circuits, enhancing safety for both users and equipment.
• Reduced Power Consumption: Consumes minimal power, contributing to energy efficiency.
• Increased System Reliability: Offers a long lifespan and high reliability, reducing the need for frequent replacements.
• Simplified Design: Simplifies circuit design with its easy-to-use interface and compact form factor.
• Improved Performance: Delivers fast and precise switching, improving the overall performance of the system.

The TLP168J is available in a surface-mount package, facilitating automated assembly processes. Its robust design and high-performance characteristics make it a suitable choice for demanding applications where isolation, reliability, and speed are critical factors.
