Same model may have multiple batches, images only for reference.

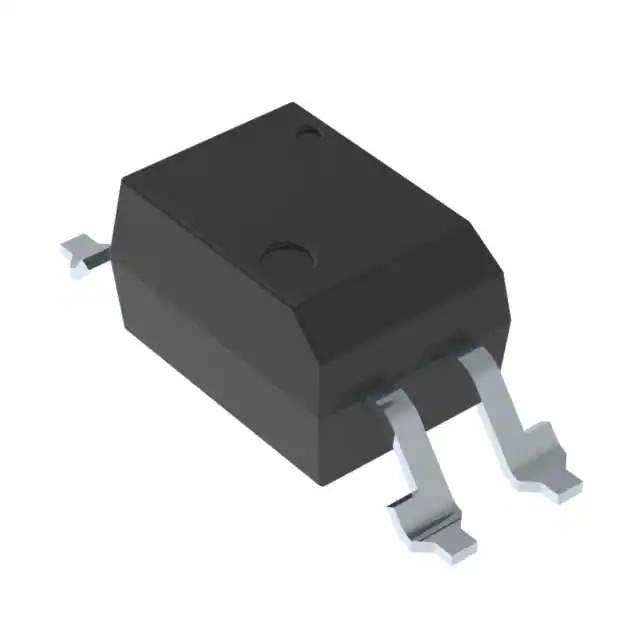

TLP241AF(TP4,F Real Image
Same model may have multiple batches, images only for reference.

TLP241AF(TP4,F

Part No TLP241AF(TP4,F
Manufacturer Toshiba Semiconductor and Storage
Catalog Solid State Relays
Description SSR RELAY SPST-NO 2A 0-40V / Solid State SPST-NO (1 Form A) 4-SMD (0.400", 10.16mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Solid State Relays
Mfr Toshiba Semiconductor and Storage
Series TLP241AF
Package Tape & Reel
Product Status Active
Mounting Type Surface Mount
Circuit SPST-NO (1 Form A)
Output Type AC, DC
Voltage - Input 1.27VDC
Voltage - Load 0 V ~ 40 V
Load Current 2 A
On-State Resistance (Max) 150 mOhms
Termination Style Gull Wing
Package / Case 4-SMD (0.400", 10.16mm)
Supplier Device Package 4-SMD
Base Product Number TLP241
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0030
Win Source Part Number 852058-TLP241AF(TP4,F
Ultra Librarian 3D Model Ultra Librarian TLP241AF(TP4,F CAD Model

Description

The TLP241AF(TP4,F) is a solid state relay from the TLP241AF series. It is from Toshiba Semiconductor and Storage.

  • Series: TLP241AF
  • Input Voltage: 1.27VDC
  • Output Type: AC, DC
  • Circuit: SPST-NO (1 Form A)
  • On-State Resistance (Max): 150 mOhms
  • Load Current: 2A
  • Voltage - Load: 0V ~ 40V
  • Packaging: Tape & Reel
  • Standard Package: 1,000 pcs
  • ECCN: EAR99
  • HTSUS Code: 8536.41.0030
