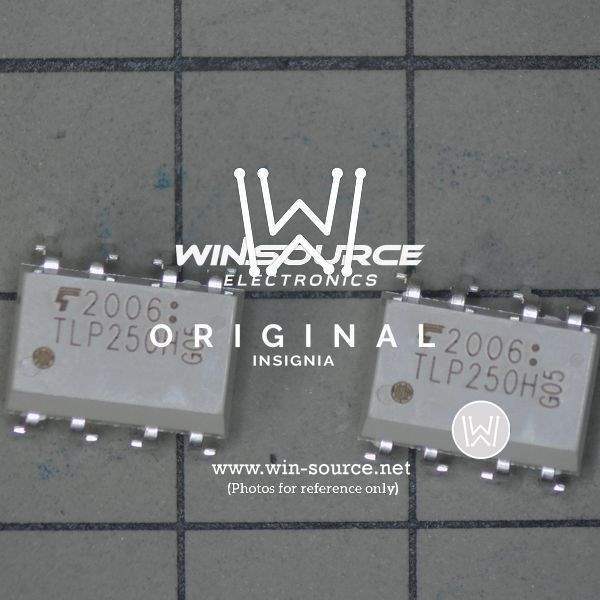

TLP250H(F) Real Image TLP250H(F) real image
Same model may have multiple batches, images only for reference.
TLP250H(F) Real Image TLP250H(F) real image
TLP250H(F) Real Image TLP250H(F) real image
Same model may have multiple batches, images only for reference.

TLP250H(F)

Part No TLP250H(F)
Manufacturer Toshiba Semiconductor and Storage
Catalog Optoisolators - Logic Output
Description X36 PB-F DRIVER COUPLER DIP 8 TH
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Toshiba Semiconductor and Storage
Packaging Tube
Number of Channels 1
Inputs - Side 1/Side 2 1/0
Voltage - Isolation 3750Vrms
Common Mode Transient Immunity (Min) 40kV/μs
Input Type DC
Output Type Push-Pull, Totem Pole
Current - Output / Channel 2.5A
Propagation Delay tpLH / tpHL (Maximum) 500ns, 500ns
Rise / Fall Time (Typ) 50ns, 50ns
Voltage - Forward (Vf) (Typ) 1.57V
Current - DC Forward (If) (Maximum) 20mA
Supply Voltage (V) 10V ~ 30V
Temperature Range - Operating -40°C ~ 125°C
Mounting Style Through Hole
Manufacturer Package 8-DIP
Supplier Device Package 8-DIP
Manufacturer Pack Quantity 50
MSL Level Not Applicable
Popularity High
Supply and Demand Status Balance
Win Source Part Number 801950-TLP250H(F)
Ultra Librarian 3D Model Ultra Librarian TLP250H(F) CAD Model

Description

The Toshiba Semiconductor and Storage TLP250H(F) is a push-pull, totem pole output type DC input type optocoupler.

  • Maximum Output Current/Channel: 2.5A
  • Isolation Voltage: 3750Vrms
  • Package: 8-DIP
  • Supply Voltage: 10V ~ 30V
  • Pack Quantity: 50
