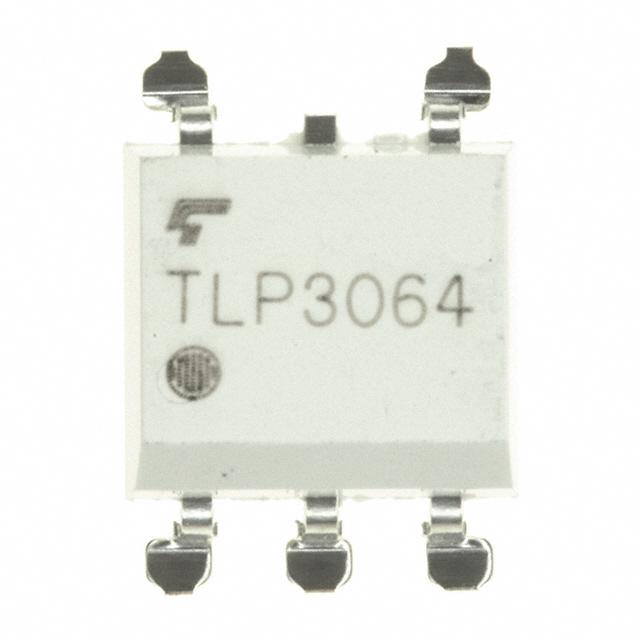

Same model may have multiple batches, images only for reference.
TLP3064(TP1,SC,F,T) Toshiba Semiconductor and Storage
Same model may have multiple batches, images only for reference.

TLP3064(TP1,SC,F,T)

Part No TLP3064(TP1,SC,F,T)
Manufacturer Toshiba Semiconductor and Storage
Catalog Optoisolators - Triac, SCR Output
Description OPTOISOLATOR 5KV TRIAC 6SMD 5L
Datasheet
TLP3064(TP1,SC,F,T) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Toshiba Semiconductor and Storage
Packaging Cut Reel
Output Type Triac
Zero Crossing Circuit Yes
Number of Channels 1
Isolation Voltage 5000Vrms
Voltage - Off State 600V
Static dV/dt (Min) 200V/μs
Current - LED Trigger (Ift) (Max) 3mA
Current - On State (It (RMS)) (Max) 100mA
Current - Hold (Ih) 600μA (Typ)
Forward Voltage 1.4V
Continuous forward current- Max 30mA
Temperature Range - Operating -40°C to 100°C
Mounting SMD (SMT)
Case / Package 6-SMD (Cut), 5 Lead
Approvals BSI, SEMKO, UR
Win Source Part Number 099712-TLP3064(TP1,SC,F,T)
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian TLP3064(TP1,SC,F,T) CAD Model

Description

The Toshiba Semiconductor and Storage TLP3064(TP1,SC,F,T) is a Triac output type electronic component.

  • Mounting Package: SMD (SMT)
  • Approvals: BSI, SEMKO, and UR
  • Forward Voltage: 1.4V
  • Voltage-Off State: 600V
  • Current-On State (It (RMS)): 100mA
  • Number of Channels: 1
  • Isolation Voltage: 5000Vrms
  • Continuous Forward Current: 30mA
  • Current-Hold (Ih): 600μA (Typ)
  • Zero-Crossing Circuit: Yes
  • Static dV/dt: 200V/μs
  • Package: 6-SMD (Cut), 5 Lead
  • Popularity: Medium
