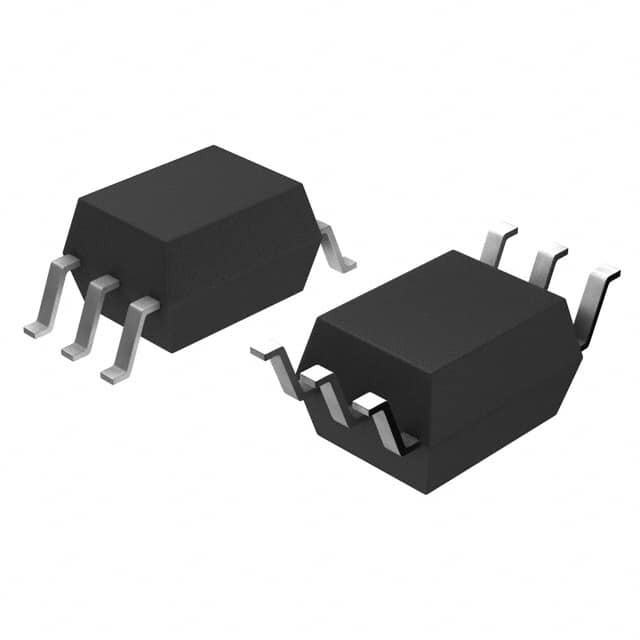

TLP3120(F)
Same model may have multiple batches, images only for reference.

TLP3120(F)

Part No TLP3120(F)
Manufacturer Toshiba Semiconductor and Storage
Catalog Solid State Relays
Description SSR RELAY SPST-NO 1.25A 0-80V / Solid State SPST-NO (1 Form A) 6-SMD, Gull Wing
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Solid State Relays
Mfr Toshiba Semiconductor and Storage
Series TLP3120
Package Tube
Product Status Obsolete
Mounting Type Surface Mount
Circuit SPST-NO (1 Form A)
Output Type AC, DC
Voltage - Input 1.15VDC
Voltage - Load 0 V ~ 80 V
Load Current 1.25 A
On-State Resistance (Max) 150 mOhms
Termination Style Gull Wing
Package / Case 6-SMD, Gull Wing
Supplier Device Package 6-SOP (2.54mm)
Base Product Number TLP3120
Standard Package 75 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0030
Win Source Part Number 900045-TLP3120(F)
Ultra Librarian 3D Model Ultra Librarian TLP3120(F) CAD Model

Description

The TLP3120 is a solid-state relay manufactured by Toshiba Semiconductor and Storage.

  • Series: TLP3120 series
  • Termination Style: gull wing
  • Package: tube
  • Standard Package: 75 pieces
  • Input Voltage: 1.15VDC
  • Output Types: AC and DC
  • Circuit Configuration: SPST-NO (1 Form A)
  • Maximum On-State Resistance: 150 mOhms
  • Load Current: 1.25 A
  • Voltage Load Range: 0V to 80V
  • Mounting: surface mountable
  • Package: 6-SMD, gull wing
  • Supplier Device Package: 6-SOP (2.54mm)
  • Status: obsolete product
  • HTSUS code: 8536.41.0030
