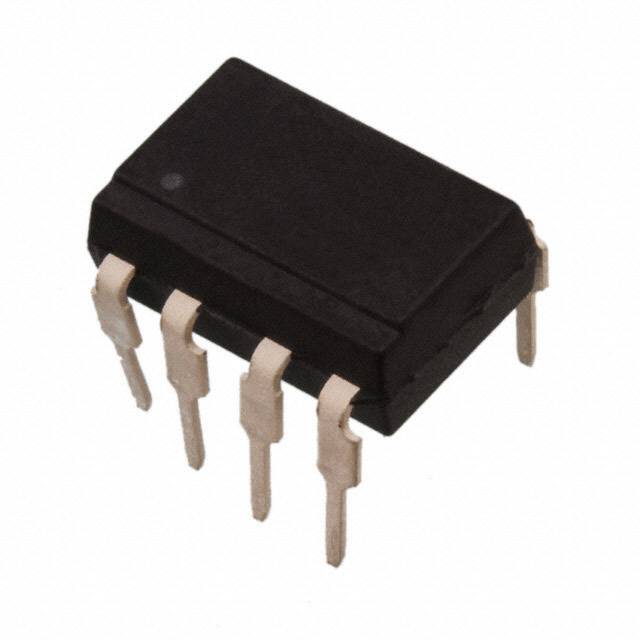

Same model may have multiple batches, images only for reference.
TLP521-1(GB,F) Toshiba Semiconductor and Storage
Same model may have multiple batches, images only for reference.

TLP521-1(GB,F)

Part No TLP521-1(GB,F)
Manufacturer Toshiba Semiconductor and Storage
Catalog Optoisolators - Transistor, Photovoltaic Output
Description Optoisolator Transistor Output 5300Vrms 2 Channel 8-DIP
Datasheet
TLP521-1(GB,F) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators
Family Optoisolators - Transistor, Photovoltaic Output
Manufacturer Isocom Components 2004 LTD
Packaging Tube
Part Status Active
Number of Channels 2
Voltage - Isolation 5300Vrms
Current Transfer Ratio (Min) 100% @ 5mA
Current Transfer Ratio (Max) 600% @ 5mA
Rise / Fall Time (Typ) 4μs, 3μs
Input Type DC
Output Type Transistor
Voltage - Output (Max) 55V
Voltage - Forward (Vf) (Typ) 1.15V
Current - DC Forward (If) (Max) 50mA
Vce Saturation (Max) 400mV
Operating Temperature Range -30°C ~ 100°C
Mounting Style Through Hole
Package 8-DIP (0.300", 7.62mm)
Manufacturer Device Package 8-DIP
Win Source Part Number 218246-TLP521-1(GB,F)
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian TLP521-1(GB,F) CAD Model

Description

This medium popularity electronic component is manufactured by Isocom Components 2004 LTD.

  • Win Source Part Number: 218246-TLP521-1(GB,F)
  • Category: isolators
  • Packaging: tube
  • Mounting style: through hole
  • Operating temperature range: -30°C to 100°C
  • Output type: transistor
  • Input type: DC
  • Additional information: not available
