TLP759(D4,J,F) Toshiba Semiconductor and Storage
Same model may have multiple batches, images only for reference.

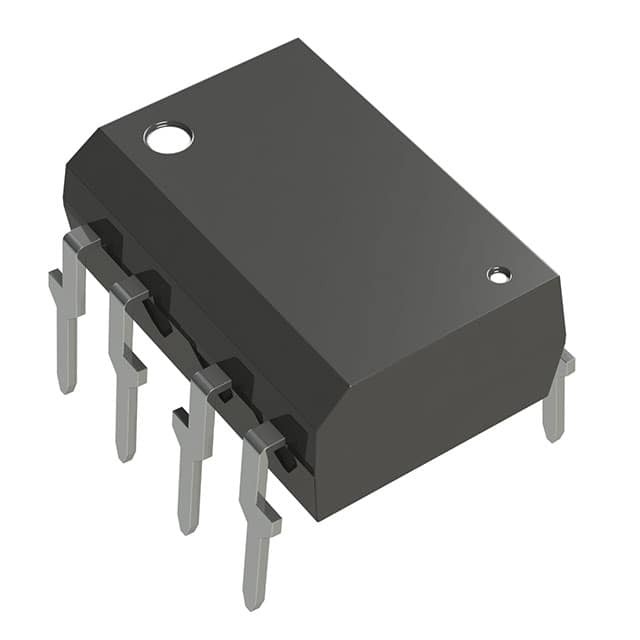

TLP759(D4,J,F)

Part No TLP759(D4,J,F)
Manufacturer Toshiba Semiconductor and Storage
Catalog Optoisolators - Transistor, Photovoltaic Output
Description PHOTOCOUPLER LOGIC 8DIP T/H / Optoisolator Transistor Output 5000Vrms 1 Channel 8-DIP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators>Optoisolators - Transistor, Photovoltaic Output
Mfr Toshiba Semiconductor and Storage
Package Tube
Product Status Last Time Buy
Number of Channels 1
Voltage - Isolation 5000Vrms
Current Transfer Ratio (Min) 20% @ 16mA
Turn On / Turn Off Time (Typ) 200ns, 300ns
Input Type DC
Output Type Transistor
Voltage - Output (Max) 20V
Current - Output / Channel 8mA
Voltage - Forward (Vf) (Typ) 1.65V
Current - DC Forward (If) (Max) 25 mA
Temperature Range - Operating -55°C ~ 100°C
Mounting Type Through Hole
Package / Case 8-DIP (0.300", 7.62mm)
Supplier Device Package 8-DIP
Base Product Number TLP759
MSL Level Not Applicable
ECCN EAR99
HTSUS 8541.49.8000
Other Names TLP759(D4JF)
Standard Package 50
Win Source Part Number 993173-TLP759(D4,J,F)
Ultra Librarian 3D Model Ultra Librarian TLP759(D4,J,F) CAD Model

Description

This electronic component is an isolator in the optoisolators-transistor, photovoltaic output category from Toshiba.

  • Series: TLP759
  • Package: Tube
  • Standard Package: 50 pieces
  • Output Type: Transistor
  • Input Type: DC
  • Maximum DC Forward Current: 25mA
  • Typical Forward Voltage: 1.65V
  • Current Output per Channel: 8mA
  • Number of Channels: 1
  • Isolation Voltage: 5000Vrms
  • Minimum Current Transfer Ratio: 20% @ 16mA
  • Maximum Output Voltage: 20V
  • Turn On/Turn Off Time: 200ns/300ns
  • Mounting Type: Through Hole
  • Package: 8-DIP
  • Operating Temperature Range: -55°C to 100°C
  • ECCN: EAR99
  • Risk of Fake Products: 69%
  • Product Status: Last-Time Buy
