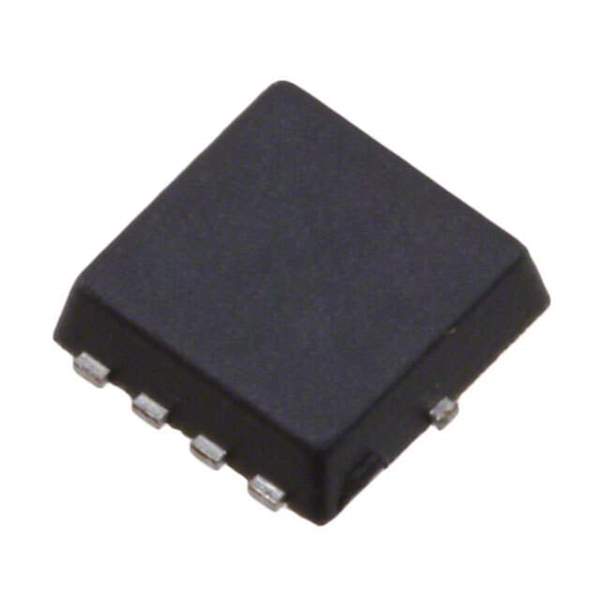

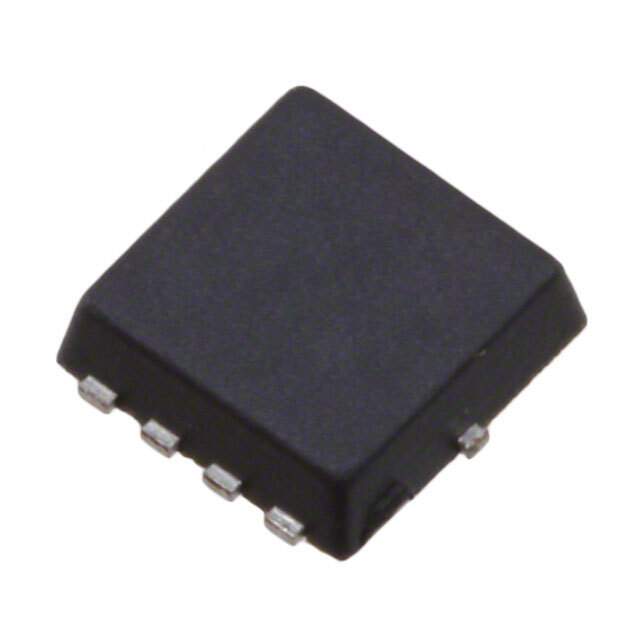

The TPN14006NH is an N-channel Power MOSFET from Toshiba Semiconductor and Storage. This MOSFET is designed for high-efficiency power switching applications, offering low on-resistance and fast switching speeds. Its primary function is to control the flow of electrical current with minimal power loss, making it suitable for a wide range of power management systems.

Applications

• DC-DC Converters: Used in voltage regulation and power conversion circuits.
• Motor Control: Driving and controlling electric motors with high efficiency.
• Power Supplies: Enabling efficient power delivery in various electronic devices.
• LED Lighting: Controlling brightness and power in LED lighting systems.
• Battery Management Systems: Managing charging and discharging of batteries.

Features

• Low On-Resistance (RDS(on)): Minimizes power loss during switching, improving efficiency.
• High Avalanche Energy: Provides robust performance under transient conditions.
• Fast Switching Speed: Enables efficient high-frequency operation.
• Lead-Free Package: Compliant with RoHS environmental standards.
• Surface Mount Technology (SMT): Facilitates automated assembly on printed circuit boards.

Benefits

• Increased Energy Efficiency: Reduces power consumption and heat generation.
• Improved Thermal Performance: Low RDS(on) minimizes heat dissipation.
• Enhanced System Reliability: Robust design ensures stable and reliable operation.
• Reduced Board Space: Compact package size allows for denser circuit layouts.
• Lower System Cost: High efficiency reduces the need for bulky heat sinks.

Additional Details

The TPN14006NH is housed in a surface-mount package designed for optimal thermal performance. Its gate threshold voltage is carefully controlled to ensure predictable switching behavior. Specific parameters include drain-source voltage, gate-source voltage, and continuous drain current, which should be carefully considered in circuit design. Detailed specifications are available in the Toshiba Semiconductor and Storage datasheet.
