Same model may have multiple batches, images only for reference.

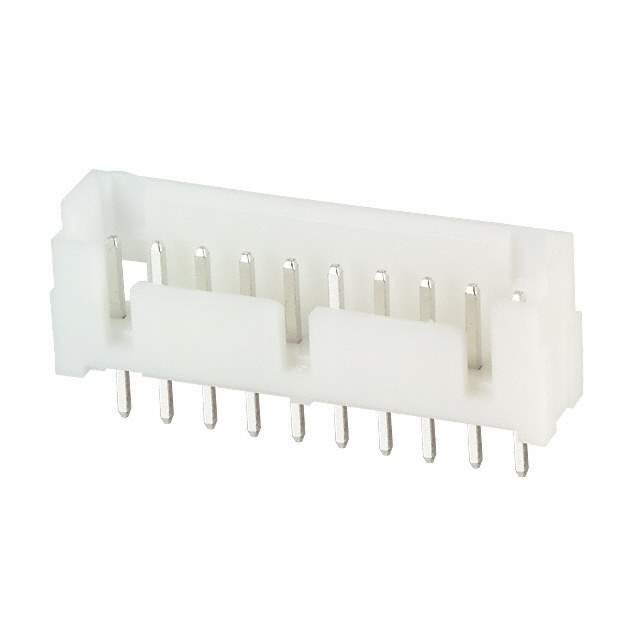

DF1BZ-10P-2.5DSA Real Image
Same model may have multiple batches, images only for reference.

DF1BZ-10P-2.5DSA

Part No DF1BZ-10P-2.5DSA
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN HEADER VERT 10POS 2.5MM / Connector Header Through Hole 10 position 0.098" (2.50mm)
Datasheet
DF1BZ-10P-2.5DSA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer Hirose Electric Co Ltd
Packaging Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.098" (2.50mm)
Number of Positions 10
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.177" (4.50mm)
Contact Length - Post 0.142" (3.60mm)
Overall Contact Length 0.417" (10.60mm)
Insulation Height 0.374" (9.50mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 39.4µin (1.00µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA), Nylon
Features Keying Slot
Temperature Range - Operating -35°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color White
Voltage Rating 250V
Mated Stacking Heights 14mm
Base Product Number DF1B
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number DF1BZ10P25DSA,*DF1BZ-10P-2.5DSA,541-2008-0-00,H10990
Standard Package 100
Win Source Part Number 1332431-DF1BZ-10P-2.5DSA
Ultra Librarian 3D Model Ultra Librarian DF1BZ-10P-2.5DSA CAD Model

Description

The Hirose Electric Co Ltd DF1BZ-10P-2.5DSA Male Pin Header is a high-quality product that is commonly used in various applications.

  • Manufacturer: Hirose Electric Co Ltd
  • Product Type: Male Pin Header
