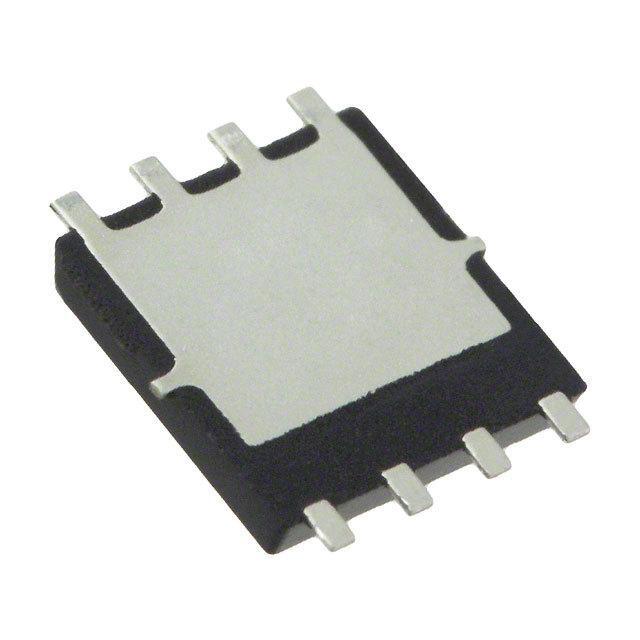

TPN22006NH,LQ

Name: TPN22006NH,LQ
Brand: Toshiba Semiconductor and Storage
SKU: 792443
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	TPN22006NH,LQ
Manufacturer	Toshiba Semiconductor and Storage
Catalog	Transistors - FETs, MOSFETs - RF
Description	MOSFET N CH 60V 9A 8-TSON / Trans MOSFET N-CH Si 60V 21A 8-Pin TSON EP Advance T/R
Datasheet	TPN22006NH,LQ Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Discrete Semiconductor Products
Manufacturer	Toshiba Semiconductor and Storage
Series	U-MOSVIII-H
Packaging	Reel package
Channel Type Type	N
Technology	MOSFET
Drain Source Voltage	60V
Current - Continuous Drain (Id) @ 25°C	9A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	6.5V, 10V
Vgs(th) (Maximum) @ Id	4V @ 100μA
Gate Charge (Qg) (Maximum) @ Vgs	12nC @ 10V
Input Capacitance (Ciss) (Maximum) @ Vds	710pF @ 30V
Vgs (Maximum)	±20V
Power Dissipation (Maximum)	700mW (Ta), 18W (Tc)
Rds On (Maximum) @ Id, Vgs	22 mOhm @ 4.5A, 10V
Operating Temperature Range	150°C (TJ)
Mounting	SMD
Manufacturer Package	8-TSON Advance (3.3x3.3)
Package	8-PowerVDFN
Win Source Part Number	792443-TPN22006NH,LQ
Popularity	Medium
Supply and Demand Status	Balance
Family Name	TPN22006NH
ECCN	EAR99
Country of Origin	China
Estimated EOL Date	2030
Ultra Librarian 3D Model	Ultra Librarian TPN22006NH,LQ CAD Model

Alternative Products

Description

The Toshiba Semiconductor and Storage TPN22006NH,LQ MOSFET, manufactured by Toshiba Semiconductor and Storage, has the following specifications:

Channel Type: N
Drain-Source Voltage: 60V
Continuous Drain Current: 9A
Maximum Power Dissipation: 700mW
Maximum Gate-Source Voltage: ±20V
Gate Threshold Voltage: 4V @ 100μA
Maximum Input Capacitance: 710pF @ 30V
Maximum Gate Charge: 12nC @ 10V
Package: 8-TSON Advance
Mounting: Surface Mountable
ECCN: EAR99
Made In: China
Supply and Demand Status: Balanced
