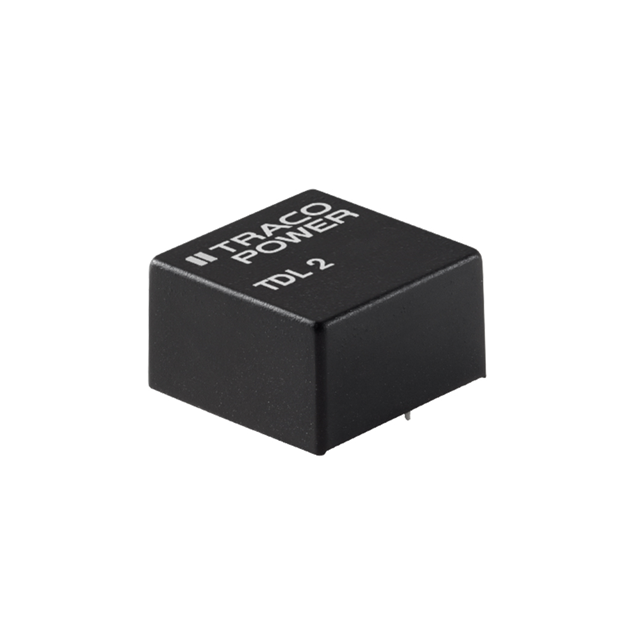

TDL 2-0512 Real Image
Same model may have multiple batches, images only for reference.

TDL 2-0512

Part No TDL 2-0512
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 12V 2W / Isolated Module DC DC Converter 1 Output 12V 167mA 4.5V - 10V Input
Datasheet
TDL 2-0512 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Product Status Not For New Designs
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 10V
Voltage - Output 1 12V
Current - Output (Max) 167mA
Power (Watts) 2 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features SCP
Temperature Range - Operating -40°C ~ 70°C
Efficiency 85%
Mounting Through Hole
Case / Package 7-DIP Module, 4 Leads
Size / Dimension 0.55" L x 0.55" W x 0.31" H (14.0mm x 14.0mm x 8.0mm)
Base Product Number TDL 2
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number 2266-TDL 2-0512,TDL 2-0512-ND,TDL2-0512
Standard Package 10
Win Source Part Number 1335341-TDL 2-0512
Ultra Librarian 3D Model Ultra Librarian TDL 2-0512 CAD Model

Description

The Traco Power TDL 2-0512 is a 2W isolated module DC DC converter designed for use in Power Supplies - Board Mount>DC DC Converters.

  • Packaging: Tube
  • Type: Isolated Module
  • Features: SCP
  • Size / Dimension: 0.55" L x 0.55" W x 0.31" H (14.0mm x 14.0mm x 8.0mm)
  • Applications: ITE (Commercial)
  • Standard Package: 10
  • Mounting: Through Hole
  • Voltage - Isolation: 1.5 kV
  • Number of Outputs: 1
  • Current - Output (Max): 167mA
  • Voltage - Input (Min): 4.5V
  • Voltage - Input (Max): 10V
  • Voltage - Output 1: 12V
  • Efficiency: 85%
  • Temperature Range - Operating: -40°C ~ 70°C
  • Case / Package: 7-DIP Module, 4 Leads
  • REACH Status: REACH Unaffected
  • HTSUS: 8504.40.9580
  • RoHS Status: ROHS3 Compliant
  • Product Status: Not for new designs
