Same model may have multiple batches, images only for reference.

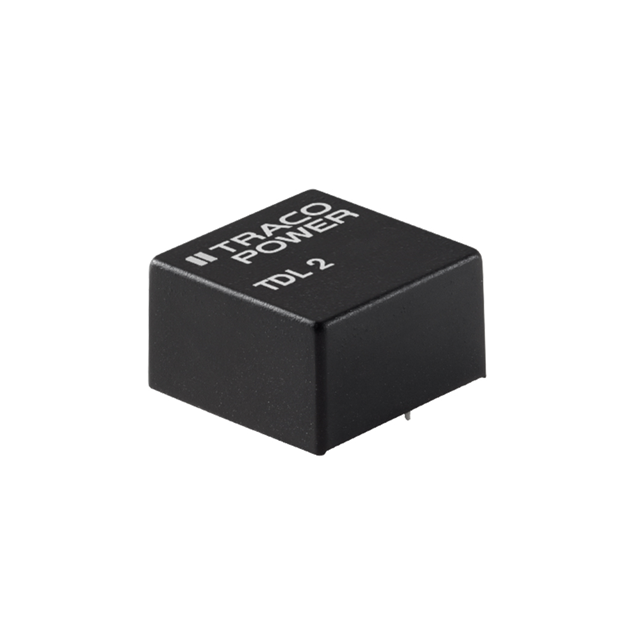

TDL 2-1221 Real Image
Same model may have multiple batches, images only for reference.

TDL 2-1221

Part No TDL 2-1221
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-5V 2W / Isolated Module DC DC Converter 2 Output 5V -5V 200mA, 200mA 9V - 18V Input
Datasheet
TDL 2-1221 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Product Status Not For New Designs
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 9V
Voltage - Input (Max) 18V
Voltage - Output 1 5V
Voltage - Output 2 -5V
Current - Output (Max) 200mA, 200mA
Power (Watts) 2 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features SCP
Temperature Range - Operating -40°C ~ 70°C
Efficiency 84%
Mounting Through Hole
Case / Package 7-DIP Module, 5 Leads
Size / Dimension 0.55" L x 0.55" W x 0.31" H (14.0mm x 14.0mm x 8.0mm)
Base Product Number TDL 2
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number TDL2-1221,TDL 2-1221-ND
Standard Package 10
Win Source Part Number 1335353-TDL 2-1221
Ultra Librarian 3D Model Ultra Librarian TDL 2-1221 CAD Model

Description

This Traco Power electronic component is a DC-DC converter with an isolated module type.

  • Features: SCP
  • Size/Dimension: 0.55" L x 0.55" W x 0.31" H (14.0mm x 14.0mm x 8.0mm)
  • Applications: ITE (Commercial)
  • Standard Package: 10
  • Mounting: Through-hole
  • Power: 2 watts
  • Voltage Isolation: 1.5 kV
  • Outputs: Two
  • Maximum Output Current: 200mA each
  • Input Voltage: 9V to 18V
  • Output Voltage: 5V and -5V
  • Efficiency: 84 percent
  • Temperature Range: -40°C to 70°C
  • Packaging: 7-DIP module with 5 leads
  • ROHS Compliance: ROHS3 compliant
