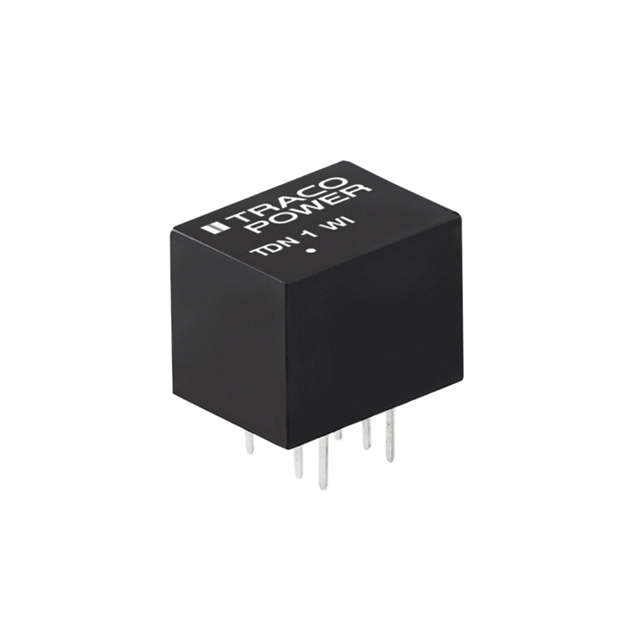

TDN 1-2422WI

Part No TDN 1-2422WI
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-12V 1.1W / Isolated Module DC DC Converter 2 Output 12V -12V 45mA, 45mA 9V - 36V Input
Datasheet
TDN 1-2422WI Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr Traco Power
Series TDN 1WI (1W)
Package Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 9V
Voltage - Input (Max) 36V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Current - Output (Max) 45mA, 45mA
Power (Watts) 1.1 W
Voltage - Isolation 1.6 kV
Applications ITE (Commercial)
Features Remote On/Off, SCP
Temperature Range - Operating -40°C ~ 90°C
Efficiency 80%
Mounting Type Through Hole
Package / Case 7-DIP Module, 6 Leads
Dimension 0.52" L x 0.36" W x 0.40" H (13.2mm x 9.1mm x 10.2mm)
Base Product Number TDN 1
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Names TDN1-2422WI,TDN 1-2422WI-ND,2266-TDN 1-2422WI
Standard Package 10
Win Source Part Number 1012853-TDN 1-2422WI
Ultra Librarian 3D Model Ultra Librarian TDN 1-2422WI CAD Model

Description

The Traco Power TDN 1-2422WI is a DC-DC converter that comes in an isolated module type.

  • Type: Isolated Module
  • Features: Remote On/Off, SCP
  • Application: ITE (Commercial)
  • Length: 0.52 inches (13.2mm)
  • Width: 0.36 inches (9.1mm)
  • Height: 0.40 inches (10.2mm)
  • Power: 1.1 watts
  • Efficiency: 80%
  • Input Voltage: 9V to 36V
  • Output Voltage: 12V and -12V
  • Voltage Isolation: 1.6 kV
  • Output Current: 45mA per output (max)
  • Operating Temperature: -40°C to 90°C
  • Mounting Type: Through Hole
  • Compliance: ROHS3 compliant
  • Approvals: CB, CE, cURus
