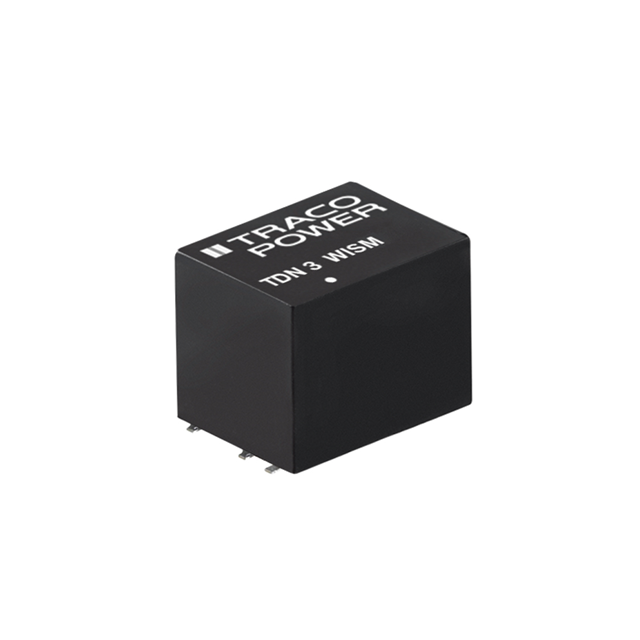

TDN 3-2421WISM Real Image
Same model may have multiple batches, images only for reference.

TDN 3-2421WISM

Part No TDN 3-2421WISM
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-5V 3W / Isolated Module DC DC Converter 2 Output 5V -5V 300mA, 300mA 9V - 36V Input
Datasheet
TDN 3-2421WISM Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 9V
Voltage - Input (Max) 36V
Voltage - Output 1 5V
Voltage - Output 2 -5V
Current - Output (Max) 300mA, 300mA
Power (Watts) 3 W
Voltage - Isolation 1.6 kV
Applications ITE (Commercial)
Features Remote On/Off, SCP
Temperature Range - Operating -40°C ~ 70°C
Efficiency 80%
Mounting Surface Mount
Case / Package 7-SMD Module, 6 Leads
Size / Dimension 0.52" L x 0.36" W x 0.40" H (13.2mm x 9.1mm x 10.2mm)
Base Product Number TDN 3
RoHS Status ROHS3 Compliant
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number TDN3-2421WISM,TDN 3-2421WISM-ND
Standard Package 10
Win Source Part Number 1335448-TDN 3-2421WISM
Ultra Librarian 3D Model Ultra Librarian TDN 3-2421WISM CAD Model

Description

The Traco Power 1335448-TDN 3-2421WISM is a DC DC converter that comes with a remote on/off feature and SCP.

  • Type: Isolated module type converter
  • Power: 3 W
  • Voltage Isolation: 1.6 kV
  • Outputs: Two
  • Maximum Current Output: 300mA and 300mA
  • Input Voltage: 9V to 36V
  • Output Voltage 1: 5V
  • Output Voltage 2: -5V
  • Efficiency: 80%
  • Applications: ITE (Commercial) applications
  • Mounting: Surface-mountable
  • Packaging: 7-SMD module, 6 leads
  • ECCN: EAR99
  • ROHS3 Compliant: Yes
