TDN 5-4811WI

Name: TDN 5-4811WI
Brand: Traco Power
SKU: 1335522
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	TDN 5-4811WI
Manufacturer	Traco Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 5V 5W / Isolated Module DC DC Converter 1 Output 5V 1A 18V - 75V Input
Datasheet	TDN 5-4811WI Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Manufacturer	Traco Power
Packaging	Tube
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	18V
Voltage - Input (Max)	75V
Voltage - Output 1	5V
Current - Output (Max)	1A
Power (Watts)	5 W
Voltage - Isolation	1.6 kV
Applications	ITE (Commercial)
Features	Remote On/Off, SCP
Temperature Range - Operating	-40°C ~ 75°C (With Derating)
Efficiency	81%
Mounting	Through Hole
Case / Package	7-DIP Module, 6 Leads
Size / Dimension	0.52" L x 0.36" W x 0.40" H (13.2mm x 9.1mm x 10.2mm)
Base Product Number	TDN 5
RoHS Status	ROHS3 Compliant
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Part Number	1951-1378
Standard Package	10
Win Source Part Number	1335522-TDN 5-4811WI
Ultra Librarian 3D Model	Ultra Librarian TDN 5-4811WI CAD Model

Alternative Products

Description

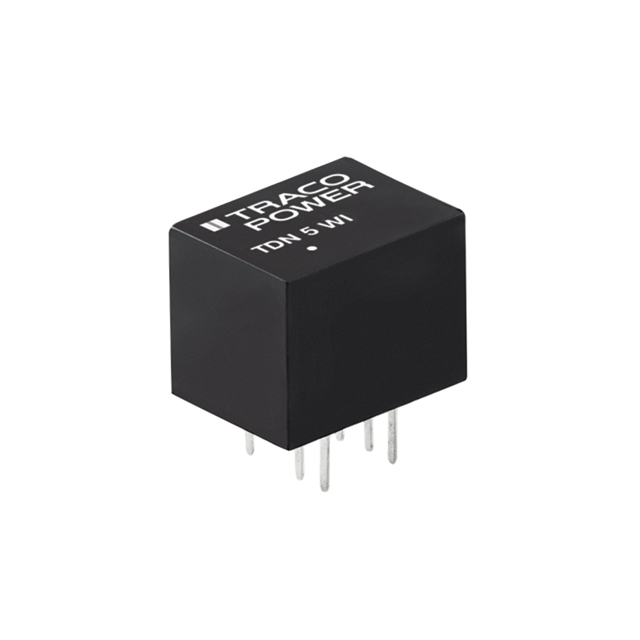

The Traco Power TDN 5-4811WI is a DC-DC converter that is designed for ITE applications.

Power Output: 5W
Voltage Isolation: 1.6kV
Output Channels: Single
Maximum Output Current: 1A
Input Voltage Range: 18V to 75V
Output Voltage: 5V
Package: 7-DIP module with 6 leads
Mounting: Through-hole
Features: Remote on/off and SCP
Temperature Range: -40°C to 75°C with derating
Compliance: ROHS3
