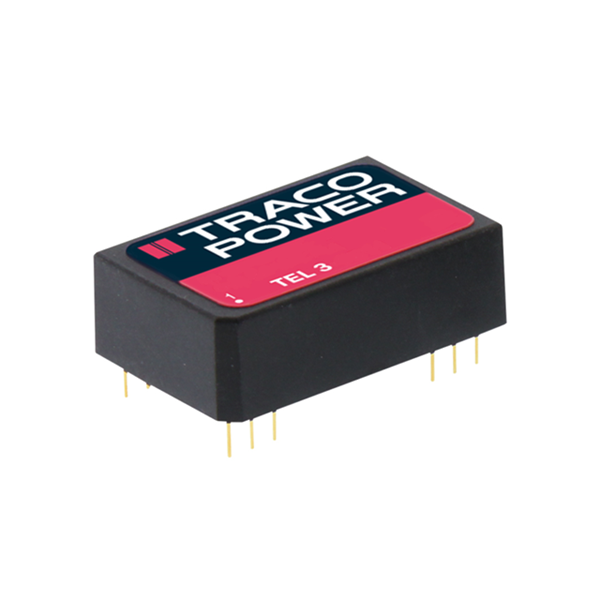

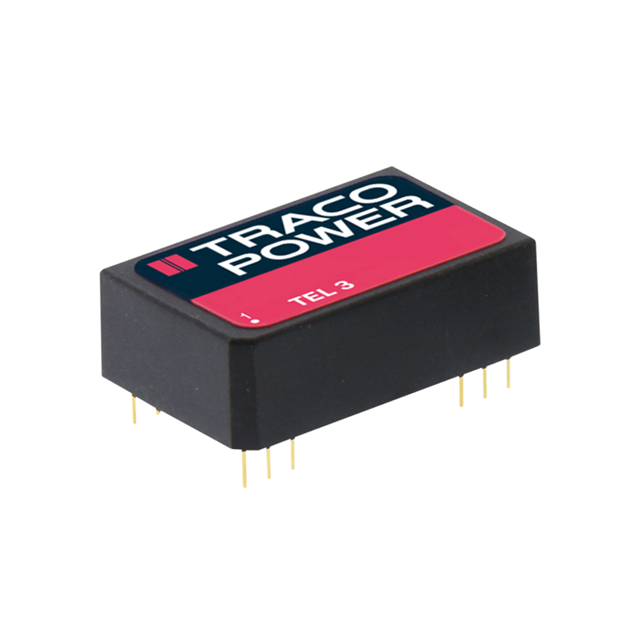

The TEL 3-1223 is a power supply electronic component manufactured by Traco Power.

• Product Type: Isolated Module
• Packaging: Tube
• Size/Dimension: 1.26" L x 0.79" W x 0.40" H (32.0mm x 20.0mm x 10.2mm)
• Win Source Part Number: 1335584-TEL 3-1223
• Standard Package: 10
• Mounting Type: Through Hole
• Power (Watts): 3 W
• Voltage-Isolation: 1.5 kV
• Number of Outputs: 2
• Current-Output (Max): 100mA, 100mA
• Voltage-Input (Min): 9V
• Voltage-Input (Max): 18V
• Voltage-Output 1: 15V
• Voltage-Output 2: -15V
• Efficiency: 80%
• Temperature Range: -40°C ~ 85°C (With Derating)
• Case/Package: 24-DIP Module, 13 Leads
• ROHS3 Compliant: Yes
